OIRAN COMBO SAMURAI S

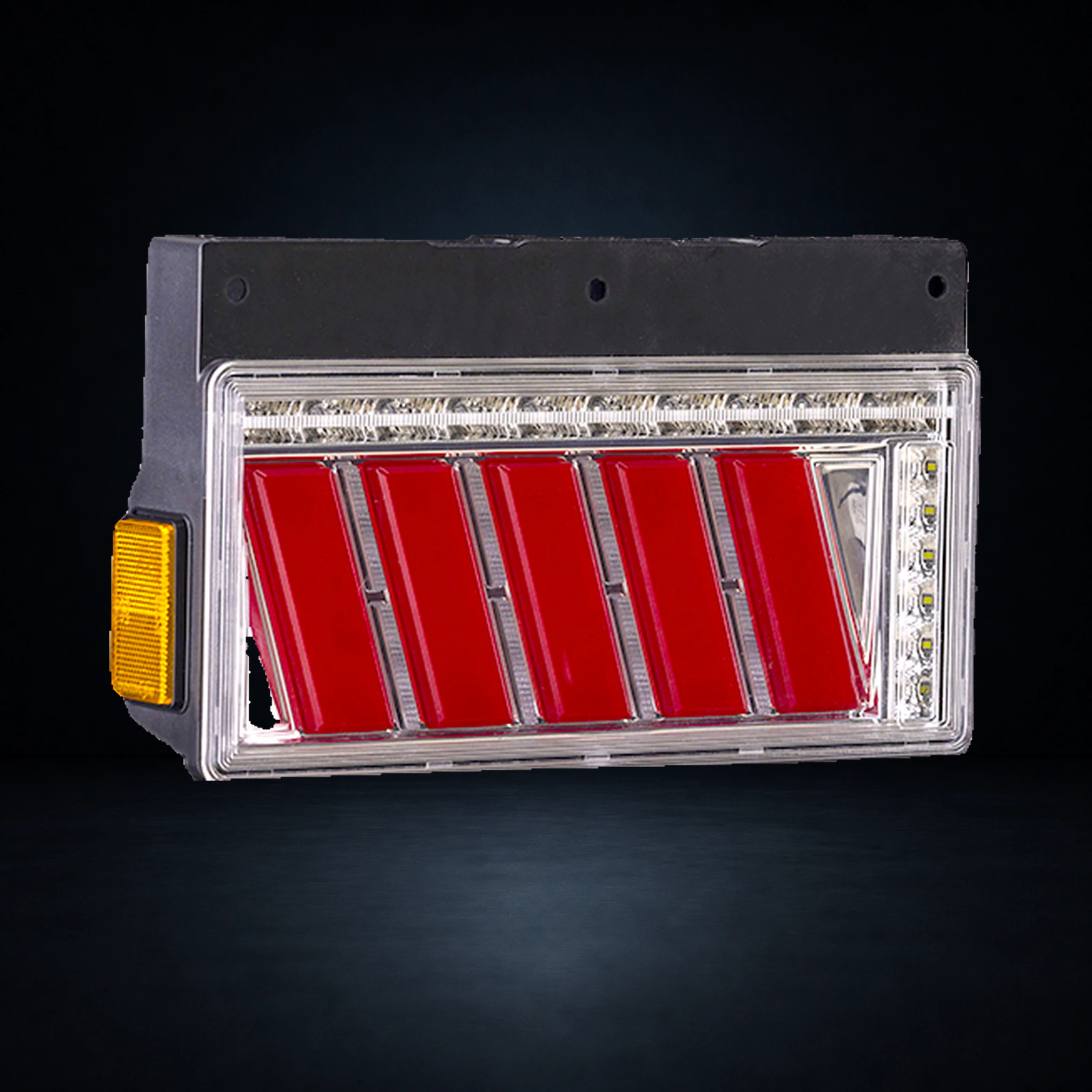

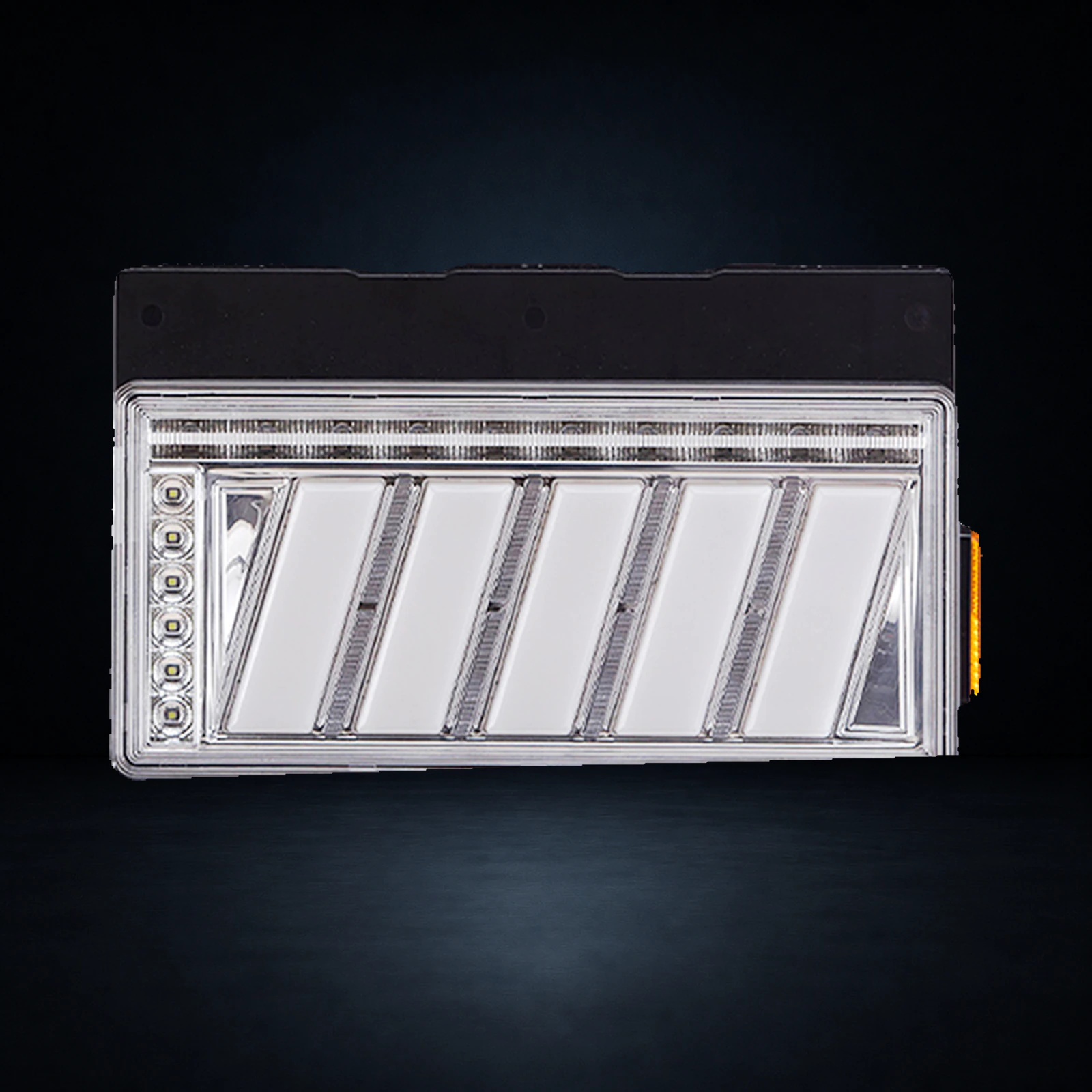

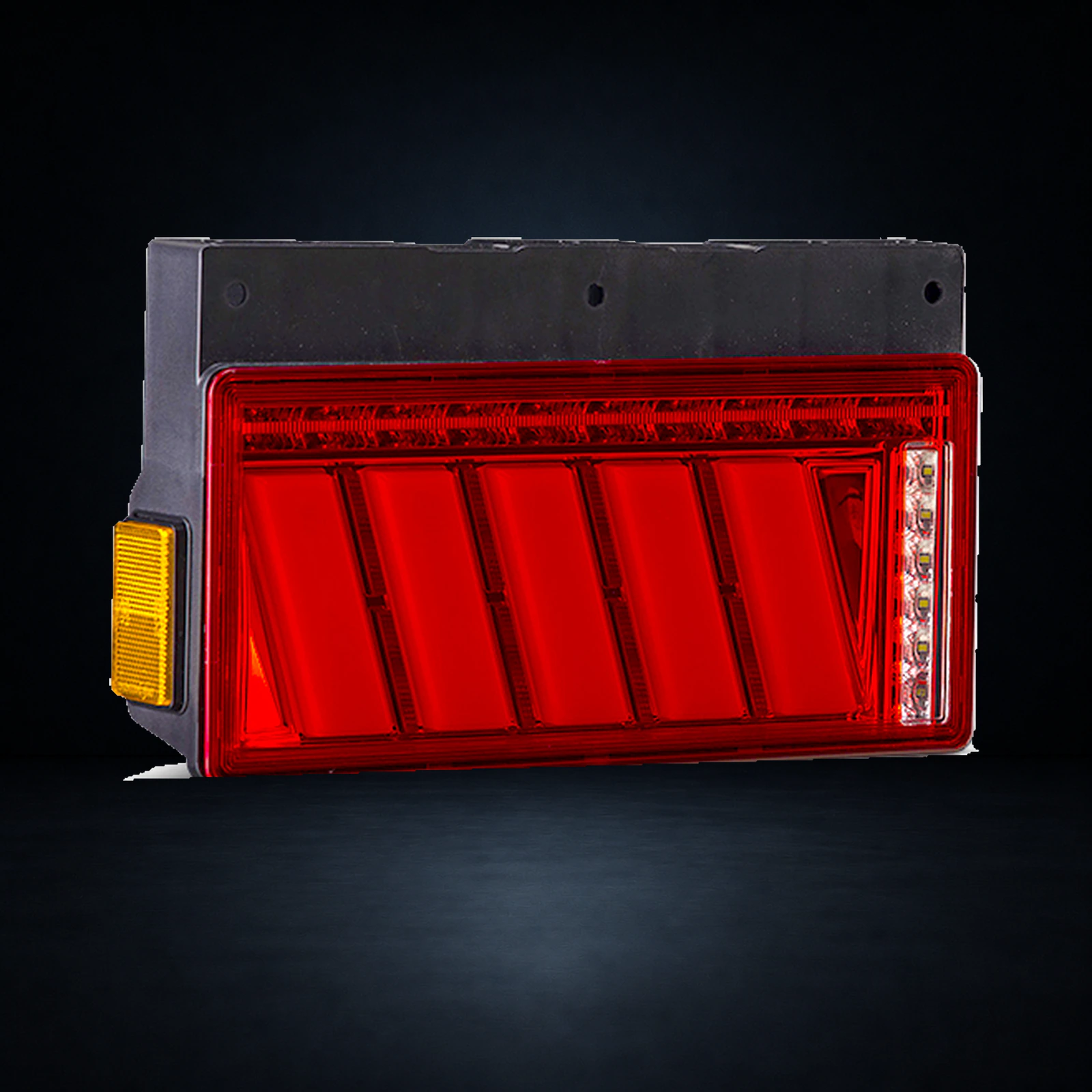

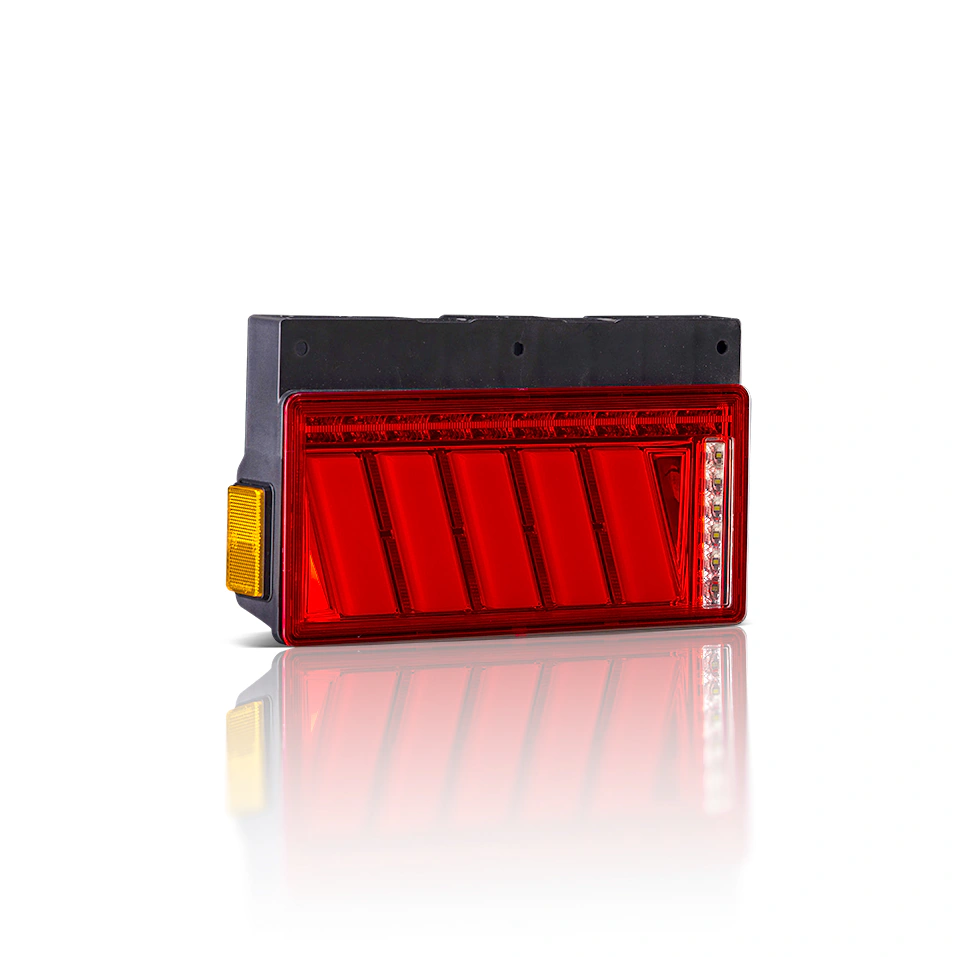

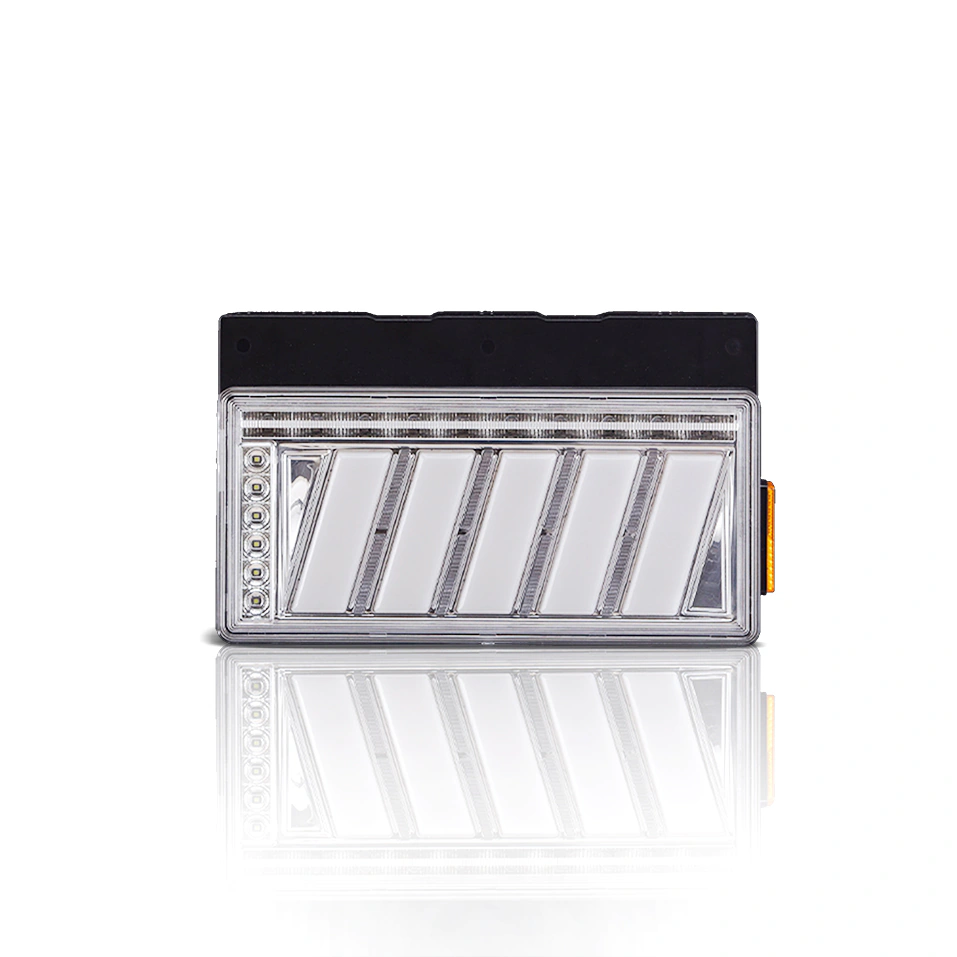

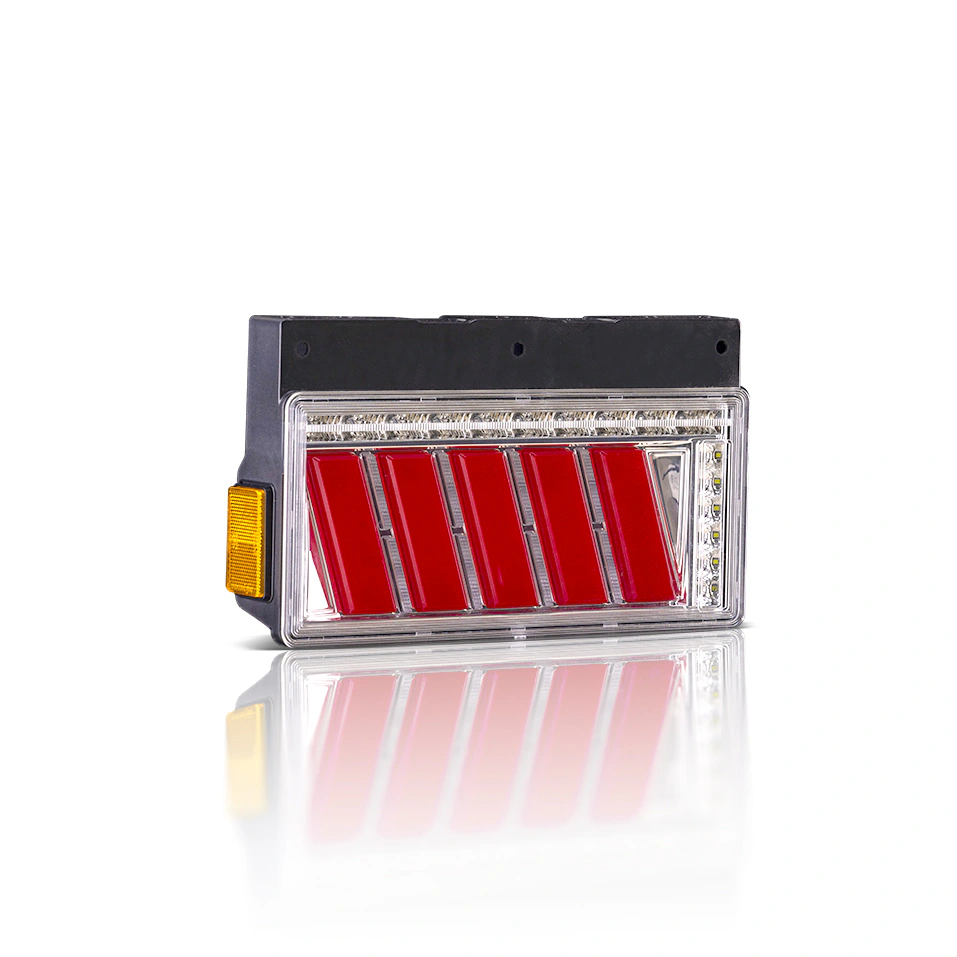

OIRAN COMBO SAMURAI S is a compact full-LED rear combination lamp set in an OEM two-lamp replacement size.
- Dimensions
- 333 × 189 × 114 mm
- Voltage
- DC12V/24V
- Lighting
- 120 LEDs + 10-LED light bar per complete left/right set
01 — PRODUCT
Built for the road.
OIRAN COMBO SAMURAI S is a compact full-LED rear combination lamp set in an OEM two-lamp replacement size. The DC12V/24V system combines position, brake, turn-signal and reverse functions with 120 LEDs and a 10-LED light bar across the complete left/right set.
The turn signal can be switched between sequential and standard flashing. A built-in hyperflash canceller and Emergency Stop Signal support simplify integration, while the optional Starting & Ending Action adds a motion sequence.
SEA operation is not approved for public-road use. Confirm vehicle fitment and installation before use.
02 — SPECIFICATION
The data.
| Dimensions | 333 × 189 × 114 mm |
|---|---|
| Voltage | DC12V/24V |
| Lighting | 120 LEDs + 10-LED light bar per complete left/right set |
| Functions | Position, brake, switchable sequential/standard turn signal and reverse |
| Features | Built-in hyperflash canceller; ESS support; optional SEA motion |
| Variants | OCSN-RC-S2SEA; OCSN-CC-S2SEA; OCSN-CCR-S2SEA |
| ECE approval | E9-24063 family: turn E9 6R01-29-24063; reverse E9 23R00-22-24063; position/brake E9 7R02-27-24063 |
| Warranty | 1 year |
