OIRAN COMBO Jr. (Junior)
OIRAN COMBO Jr.
01 — PRODUCT
Built for the road.

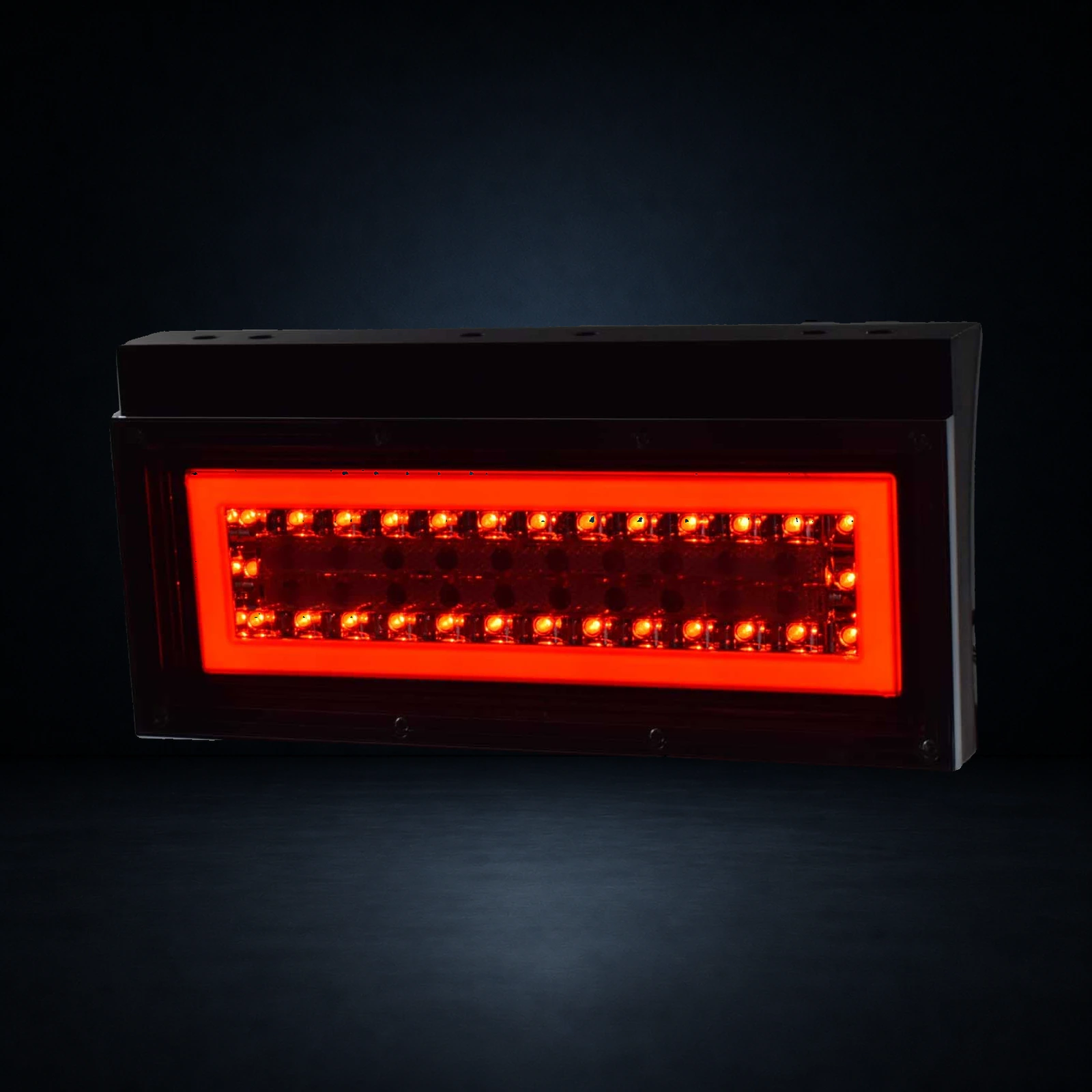

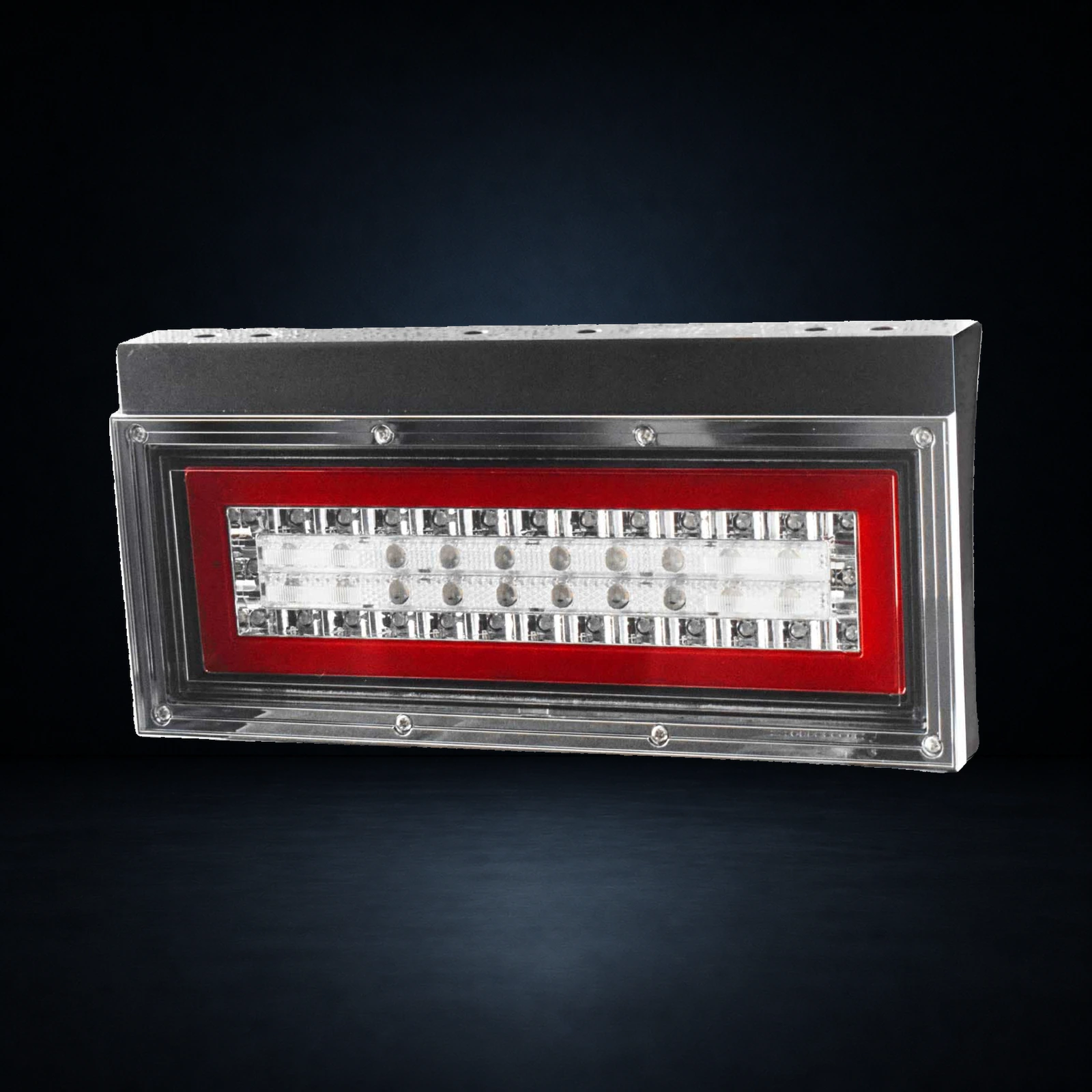

OIRAN COMBO Jr. is a compact DC12V/24V full-LED rear combination lamp for vehicles with limited installation space, including 1-ton and 2-ton trucks. Its universal left/right design combines position, brake, turn-signal and reverse functions in a complete pair.
The 136-LED set supports Emergency Stop Signal operation and carries E8 approval. A separate rear reflector is required. Depending on the vehicle, an optional resistor kit may be needed to prevent a bulb-out warning.
02 — SPECIFICATION
The data.
- Part number: OCJR-CRC-01
- Dimensions: 326 × 153 × 85 mm including bezel
- Voltage: DC12V/24V
- Lighting: 136 LEDs per complete left/right set
- Design: universal left/right
- Functions: position, brake, turn signal and reverse
- ESS supported
- ECE approval: E8 148R00-15660
- Separate rear reflector required
- OER0-04N for 24V or OER0-04CT for 12V may be required for bulb-out warnings
- Warranty: 1 year
