OIRAN JAPAN · SHOWROOM CATALOG

OIRAN COMBO TSURUGI

OIRAN COMBO TSURUGI is a full-LED rear combination lamp offered in three configurations: a long model, a short model with an indicator, and a short non-indicator model.

Long model: OCTR-CRC-LO1 — 845 × 153 × 85 mm body; 845 × 86 mm lens; 2,250 g; DC24V; universal left/right design
Short model with indicator: OCTR-CRC-SH1 — 685 × 153 × 85 mm body; 685 × 86 mm lens; 1,900 g; DC12V/24V; universal left/right design
Short non-indicator model: OCTR-CRC-SH1-C — 685 × 153 × 85 mm body; 685 × 86 mm lens; DC12V/24V; no turn-signal function

Specifications and distributor inquiry · no direct online sale

Compare lighting functions

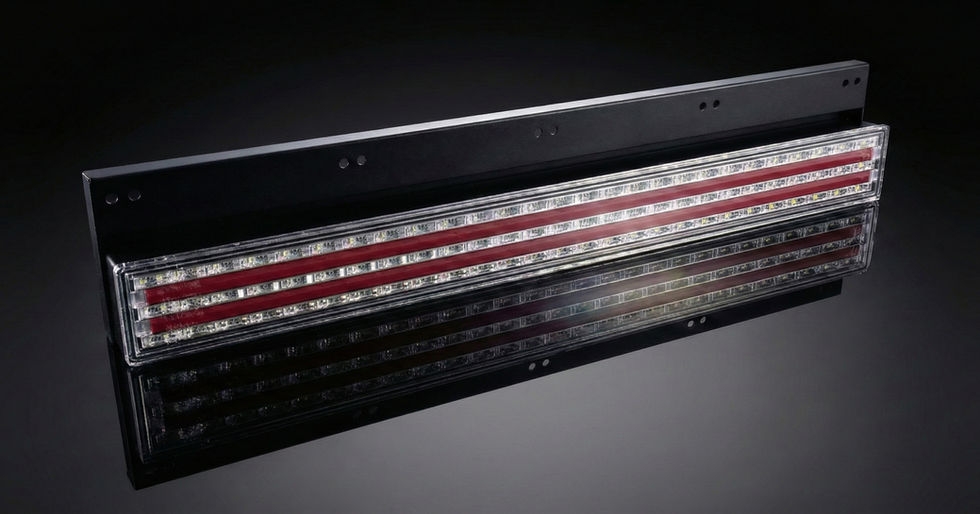

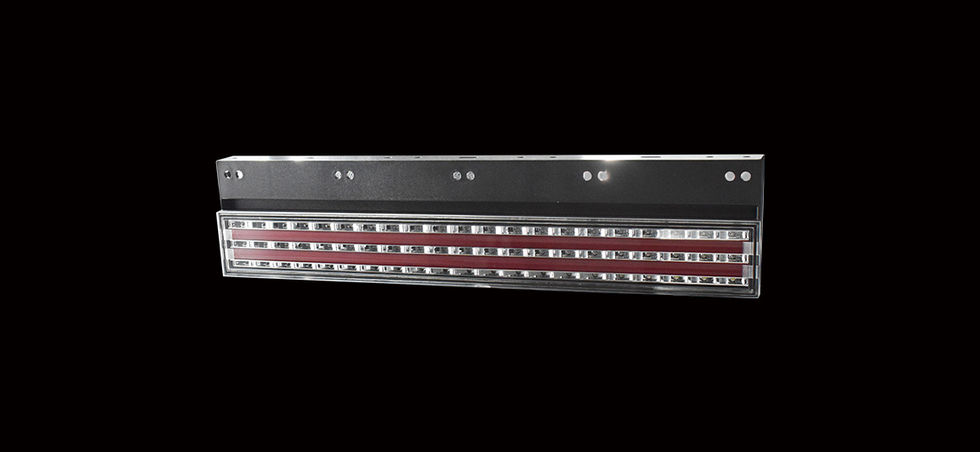

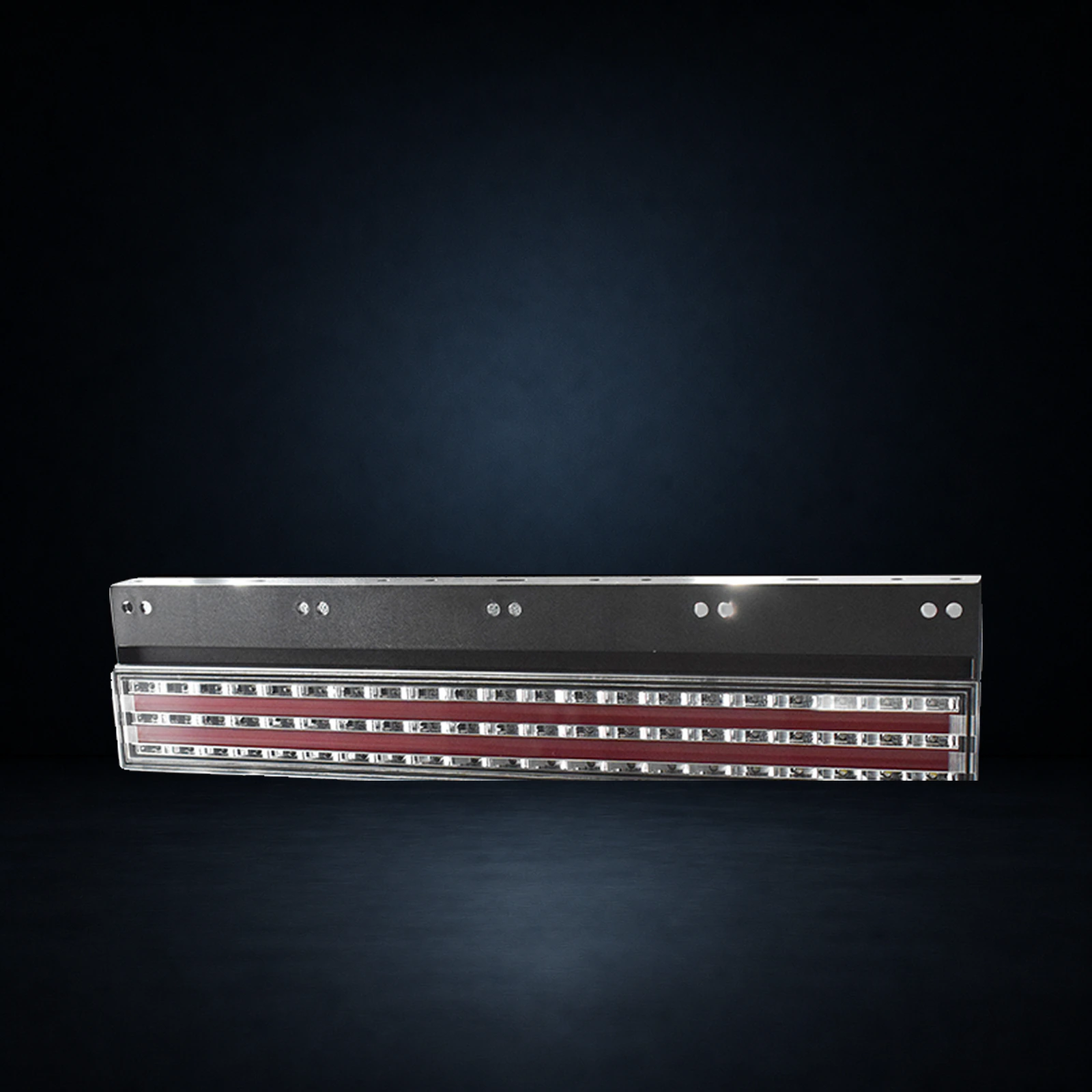

Manufacturer photos. TSURUGI is shown in the upper row; other lighting is visible in this installation.

All reference photographs remain available without JavaScript:

The manufacturer notes that a horizontal in-line arrangement is not road compliant in Japan.

Manufacturer source

01 — PRODUCT

Product overview.

OIRAN COMBO TSURUGI is a full-LED rear combination lamp offered in three configurations: a long model, a short model with an indicator, and a short non-indicator model. The same lamp design can be used on the left or right side.

The indicator-equipped models use sequential-only turn signals and support Emergency Stop Signal operation through the included ESS connector. All models provide position, brake and reverse functions; the non-indicator short model omits the turn-signal function.

A separate rear reflector is required. Installation position and method must be checked before road use. In Japan, placing the long and short lamps horizontally end-to-end may not pass vehicle inspection.

02 — SPECIFICATION

Verified specifications.

Long model	OCTR-CRC-LO1 — 845 × 153 × 85 mm body; 845 × 86 mm lens; 2,250 g; DC24V; universal left/right design
Short model with indicator	OCTR-CRC-SH1 — 685 × 153 × 85 mm body; 685 × 86 mm lens; 1,900 g; DC12V/24V; universal left/right design
Short non-indicator model	OCTR-CRC-SH1-C — 685 × 153 × 85 mm body; 685 × 86 mm lens; DC12V/24V; no turn-signal function
Functions	Position, brake and reverse; sequential turn signal on OCTR-CRC-LO1 and OCTR-CRC-SH1
ESS	Included ESS connector changes the indicator to standard flashing during hazard/ESS operation
ECE approval	OCTR-CRC-LO1: E8 148R00-15658; OCTR-CRC-SH1: E8 148R00-15659; OCTR-CRC-SH1-C: E8 148R00-15661
Reflector	Separate rear reflector required
Warranty	1 year for water ingress and lighting failure, subject to the manufacturer's terms

03 — OFFICIAL CONFIGURATIONS

3 verified configurations.

The official active-list codes below are grouped by family or published technical attribute. Confirm current availability and vehicle fitment with a distributor.

Oiran COMBO TsurugiLinear full-LED tail lamp offered in 845 mm long and 685 mm short bodies with front or top mounting; 12/24 V and standards-compliant.

Official active-list identity · availability and fitment confirmation required

Oiran COMBO Tsurugi3 codes
