OIRAN JAPAN · SHOWROOM CATALOG
OIRAN COMBO HOMURA L
Large-format DC24V full-LED rear combination lamp set with five official finishes and ULA/SEA motion functions.
- Voltage
- DC24V
- Dimensions
- 217 × 613 × 102 mm, including mounting section
- Package
- Left/right tail-lamp set
01 — PRODUCT
Built for the road.
OIRAN COMBO HOMURA L is a large-format DC24V full-LED rear combination lamp set for heavy-duty trucks. The left/right set integrates position, brake, turn-signal, reverse and rear-fog functions in a 217 × 613 × 102 mm housing.
The system uses 366 high-brightness LEDs and eight LED light bars. A built-in canceller controls hyper-flashing, while the supplied optional-function harness enables either Unlock & Lock Action (ULA) or Starting & Ending Action (SEA). Only one motion mode is used at a time.
The lamps have passed JIS 1601 truck-standard 7G vibration testing and IP69K dust/water testing, and carry ECE and ECE R10 approvals. SEA operation may be judged non-compliant and must not be used on public roads. Confirm vehicle-specific wiring, mounting and local requirements before installation.
02 — SPECIFICATION
The data.
| Voltage | DC24V |
|---|---|
| Dimensions | 217 × 613 × 102 mm, including mounting section |
| Package | Left/right tail-lamp set |
| Light source | 366 high-brightness LEDs + 8 LED light bars |
| Functions | Position, brake, turn signal, reverse and rear fog |
| Motion function | ULA or SEA via the supplied optional-function harness; one mode at a time |
| Variants | OCHN-RC-L-ULASEA; OCHN-CC-L-ULASEA; OCHN-CCR-L-ULASEA; OCHN-RG-L-ULASEA; OCHN-CGR-L-ULASEA |
| Protection | IP69K; JIS 1601 truck-standard 7G vibration test |
| Approval | ECE and ECE R10 |
| Warranty | 1 year |
03 — VERIFIED VARIANTS
5 official configurations.
Finish and side-marker choice define the exact SKU and JAN code. Use these identifiers when contacting a distributor.
| Finish | Side marker | SKU | JAN / GTIN-13 |
|---|---|---|---|

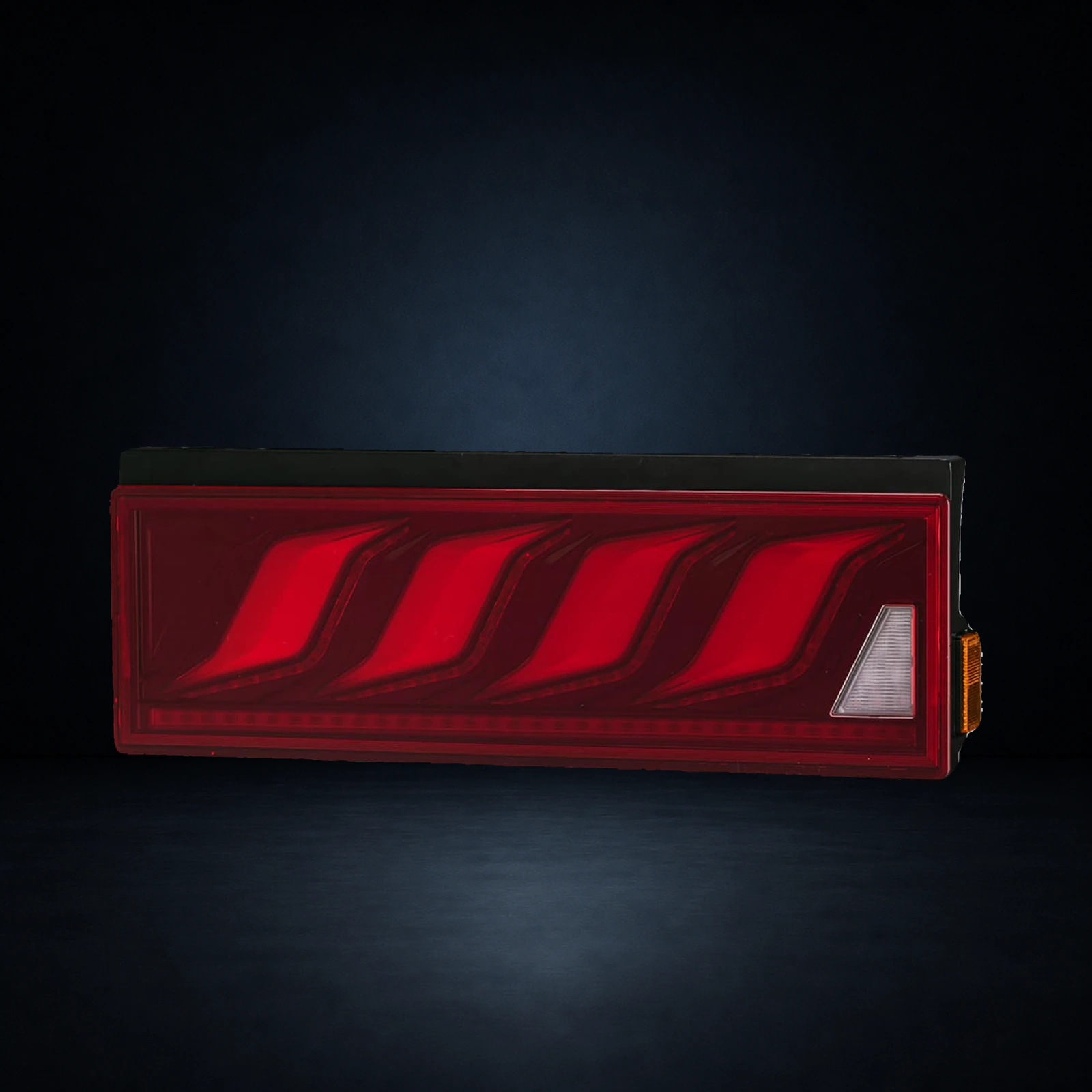

| Red / Chrome | Not offered | OCHN-RC-L-ULASEA | 4570178473839 |

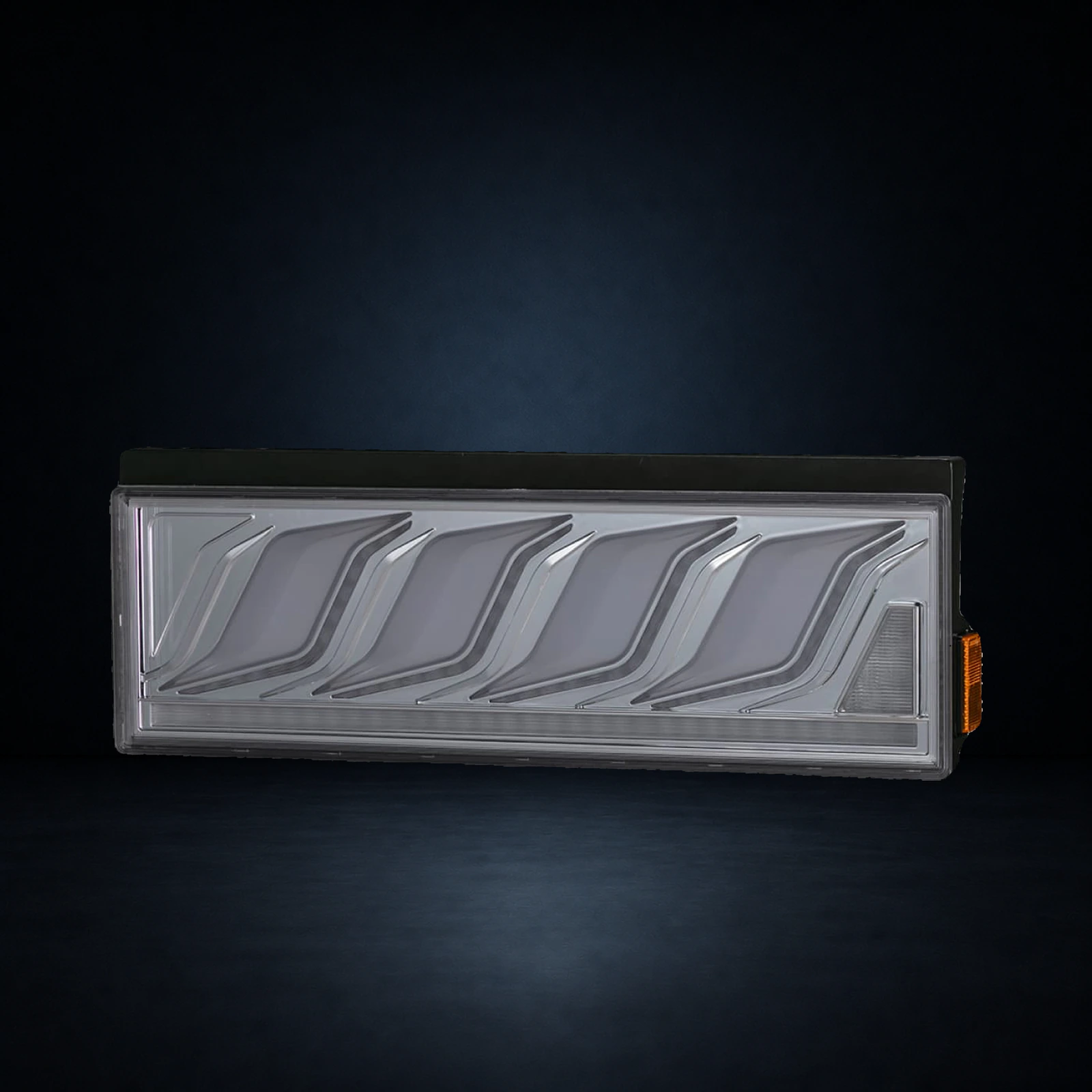

| Clear / Chrome | Not offered | OCHN-CC-L-ULASEA | 4570178473808 |

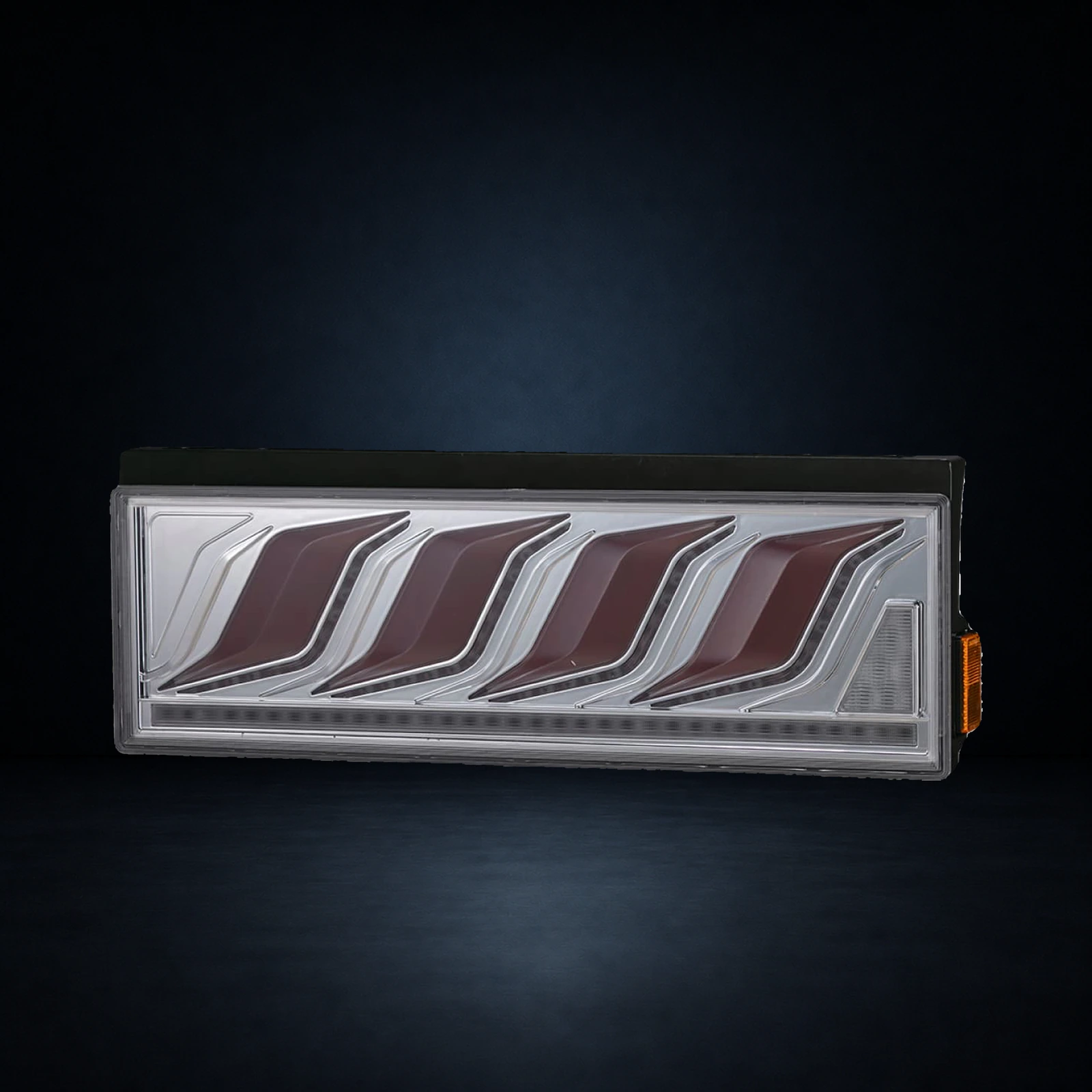

| Clear / Chrome / Red Bar | Not offered | OCHN-CCR-L-ULASEA | 4570178473815 |
| Red / Gloss Black | Not offered | OCHN-RG-L-ULASEA | 4570178473846 |

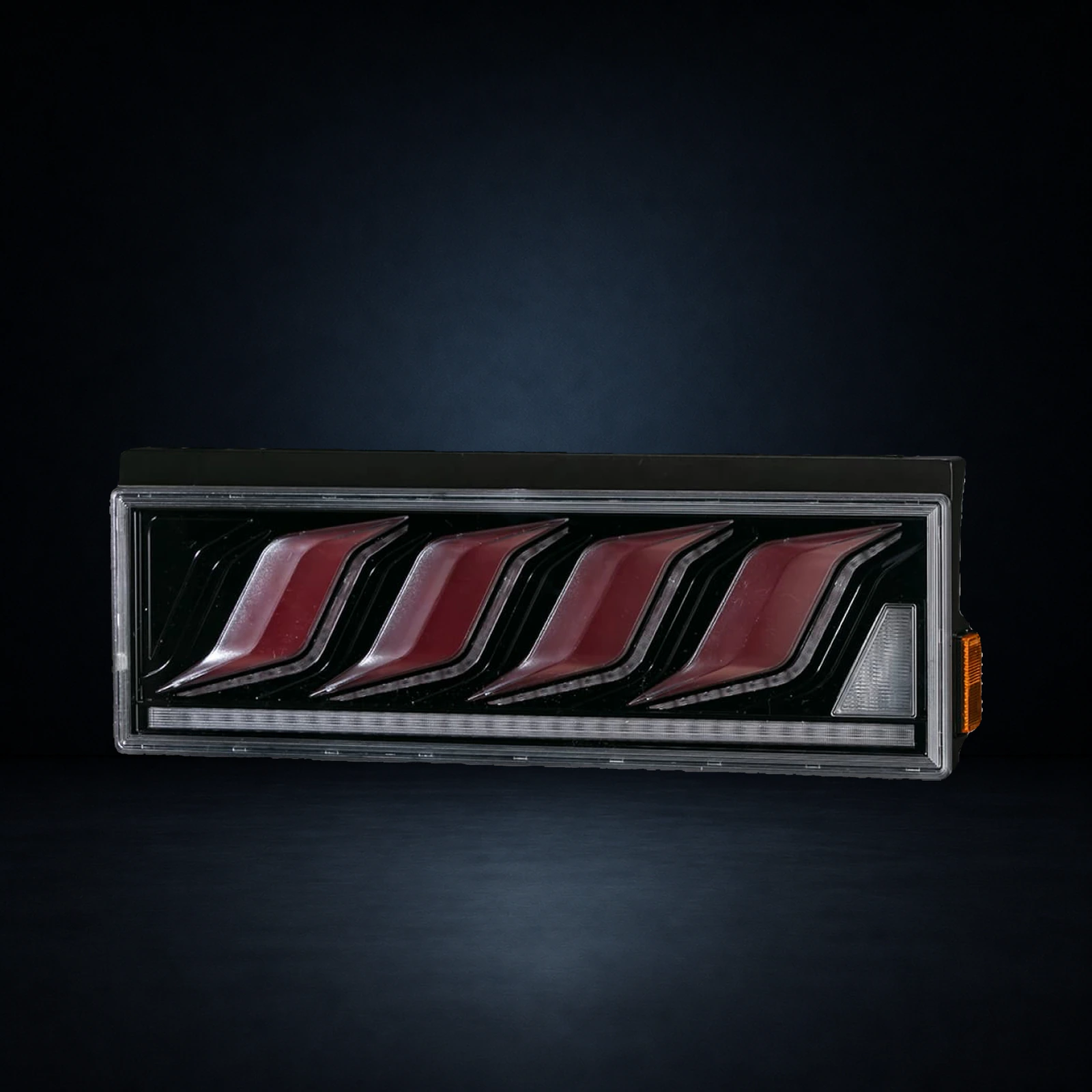

| Clear / Gloss Black / Red Bar | Not offered | OCHN-CGR-L-ULASEA | 4570178473822 |
