OIRAN SAMURAI L

Large-format 24 V LED tail lamp with light bar, ESS support and three officially listed finish configurations.

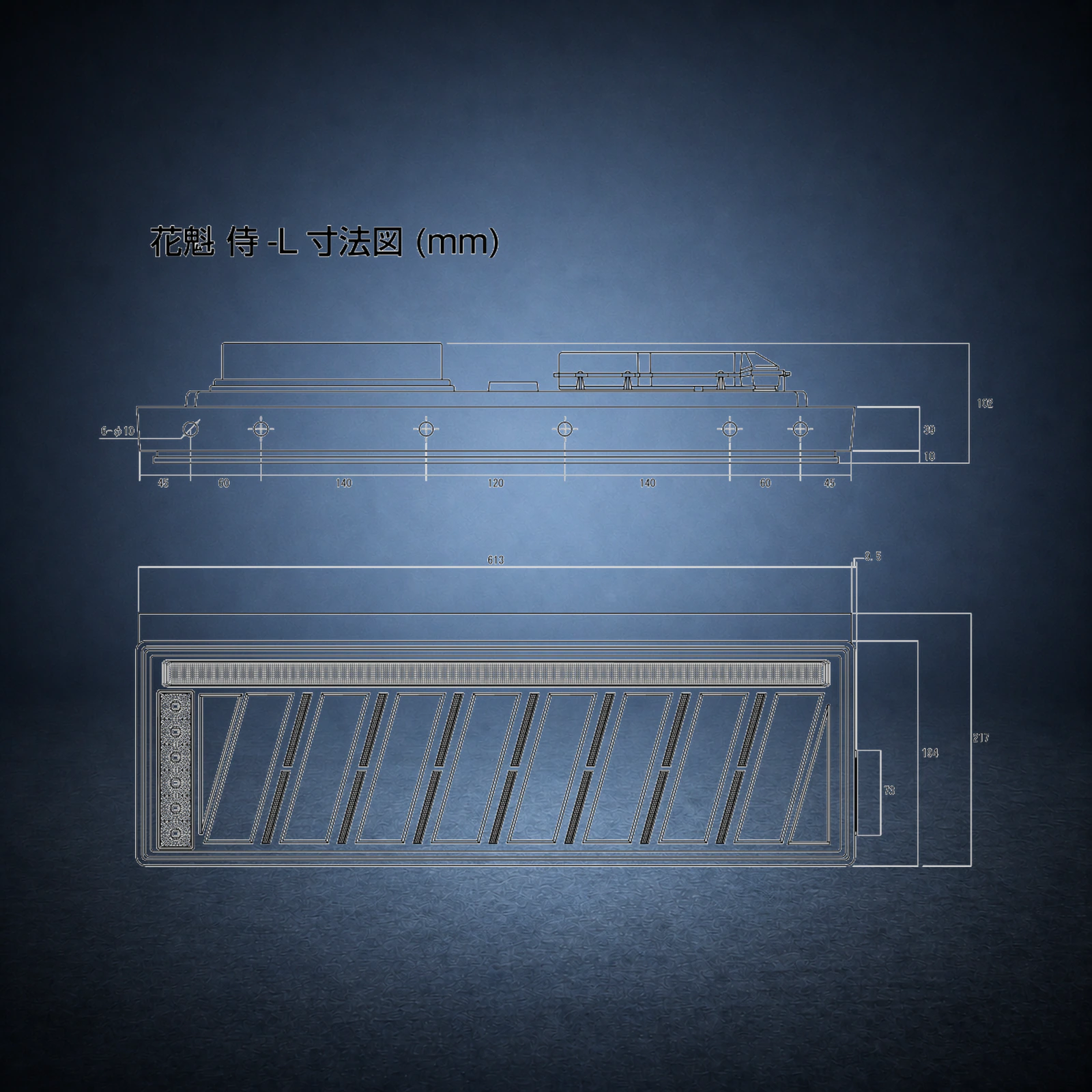

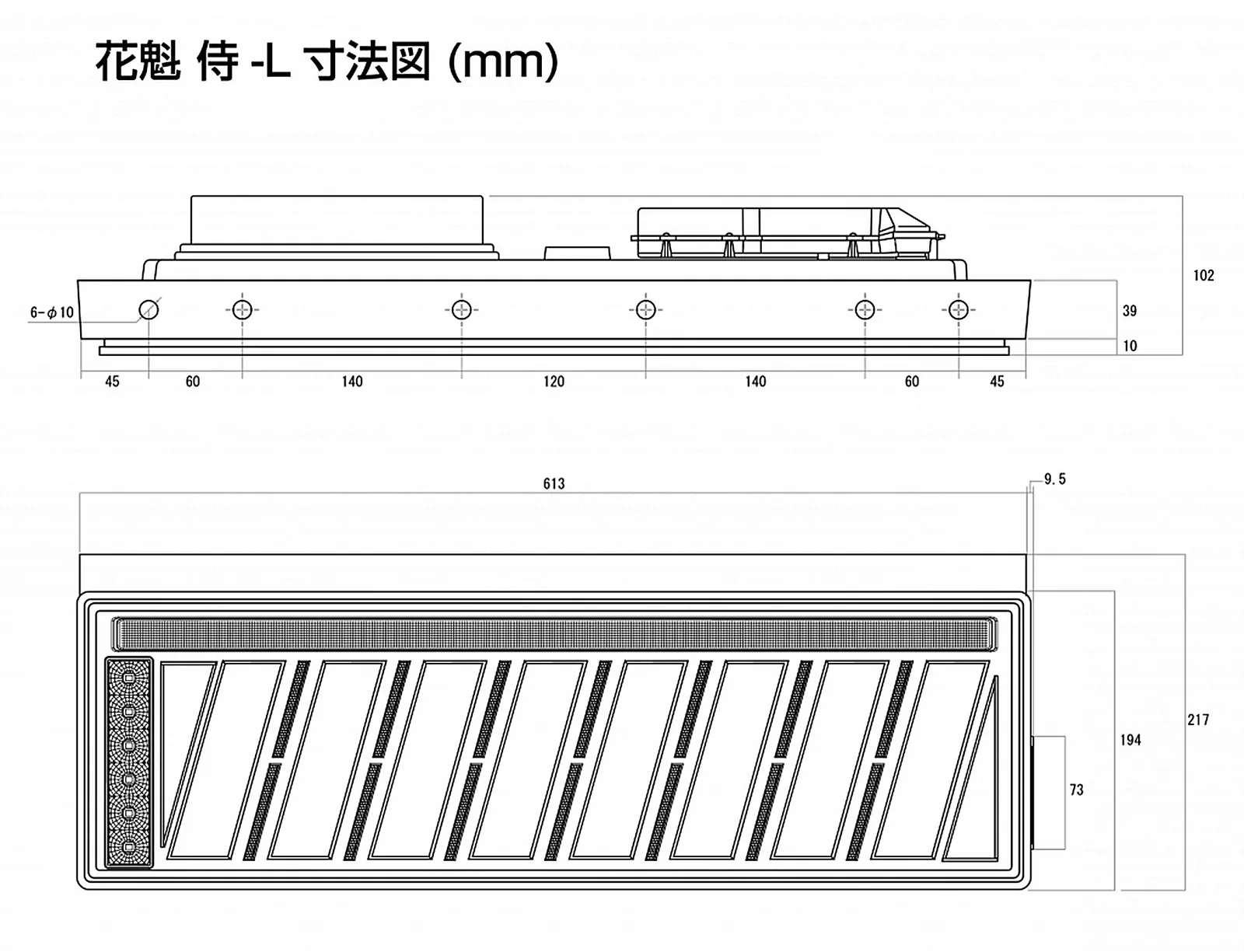

Dimensions: 613 × 217 × 102 mm (W × H × D)
Voltage: 24V, ESS compatible
LEDs: 120 per lamp (240 per pair)

Specifications and distributor inquiry · no direct online sale

01 — PRODUCT

Product overview.

OIRAN SAMURAI L is a 24 V large-format LED tail lamp measuring 613 × 217 × 102 mm, with 120 LEDs per lamp plus a light bar.

Three official OCSN codes identify the red, clear and clear/red-bar configurations. The lamp supports ESS and SEA; OIRAN states that SEA operation is not approved for public-road use. Confirm the side, harness and installation before ordering.

02 — SPECIFICATION

Verified specifications.

Spec	Value
Dimensions	613 × 217 × 102 mm (W × H × D)
Voltage	24V, ESS compatible
LEDs	120 per lamp (240 per pair)
Functions	Running light, brake light, dynamic turn signal, reverse light; light bar; SEA (Starting & Ending Action) animation
Reverse light	Stated 130% brighter than standard models
Materials	Lens PMMA, housing PC, inner lens ABS
Construction	Thermocompression bonding for water resistance and durability
Operating temperature	−30°C to 45°C
Versions	RED / WHITE
Certification	ECE (E9): turn signal E9-24043 / E9-6R01-29-24043; reverse E9-23R00-22-24043; tail/brake E9-7R02-27-24043

03 — OFFICIAL CONFIGURATIONS

3 verified configurations.

The official active-list codes below are grouped by family or published technical attribute. Confirm current availability and vehicle fitment with a distributor.

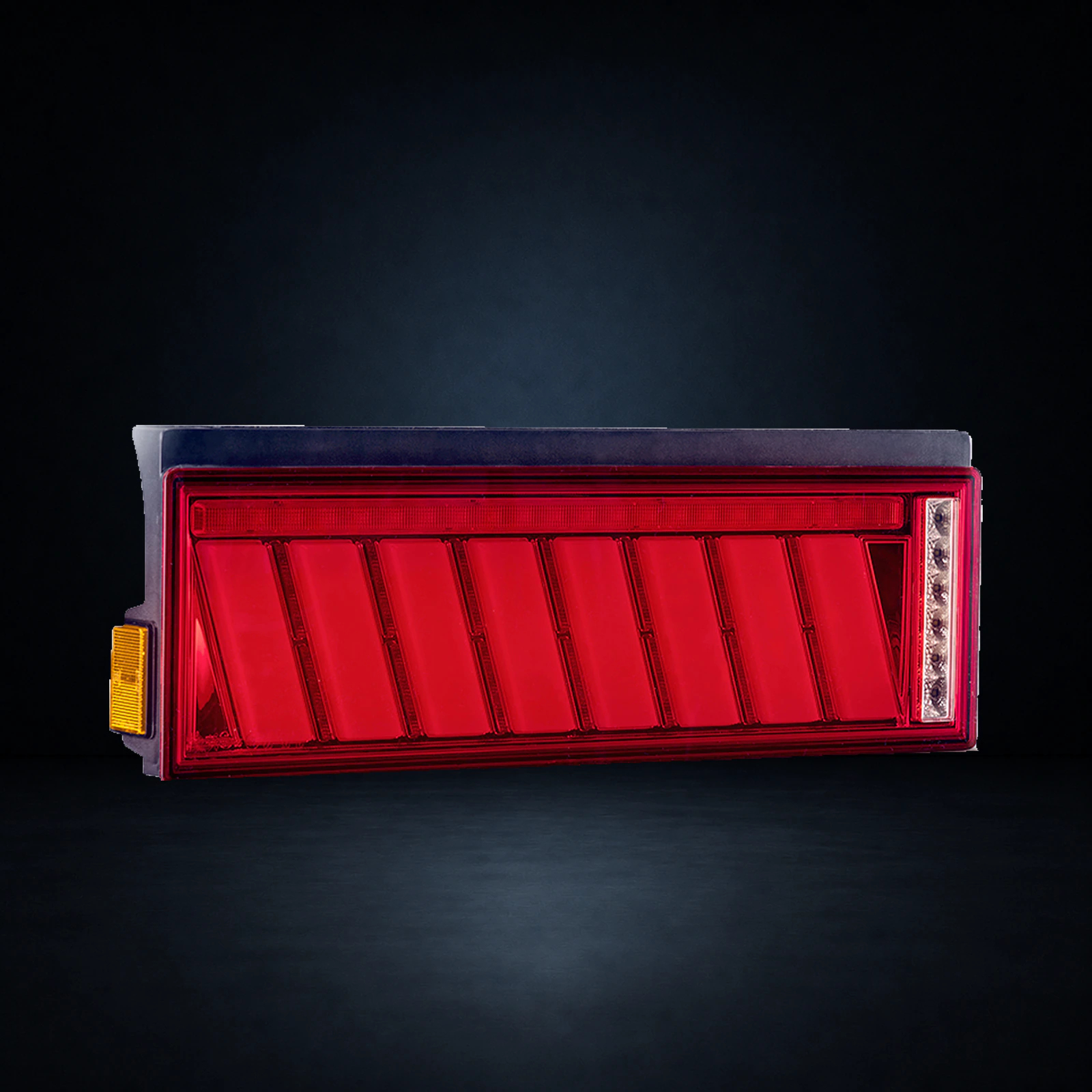

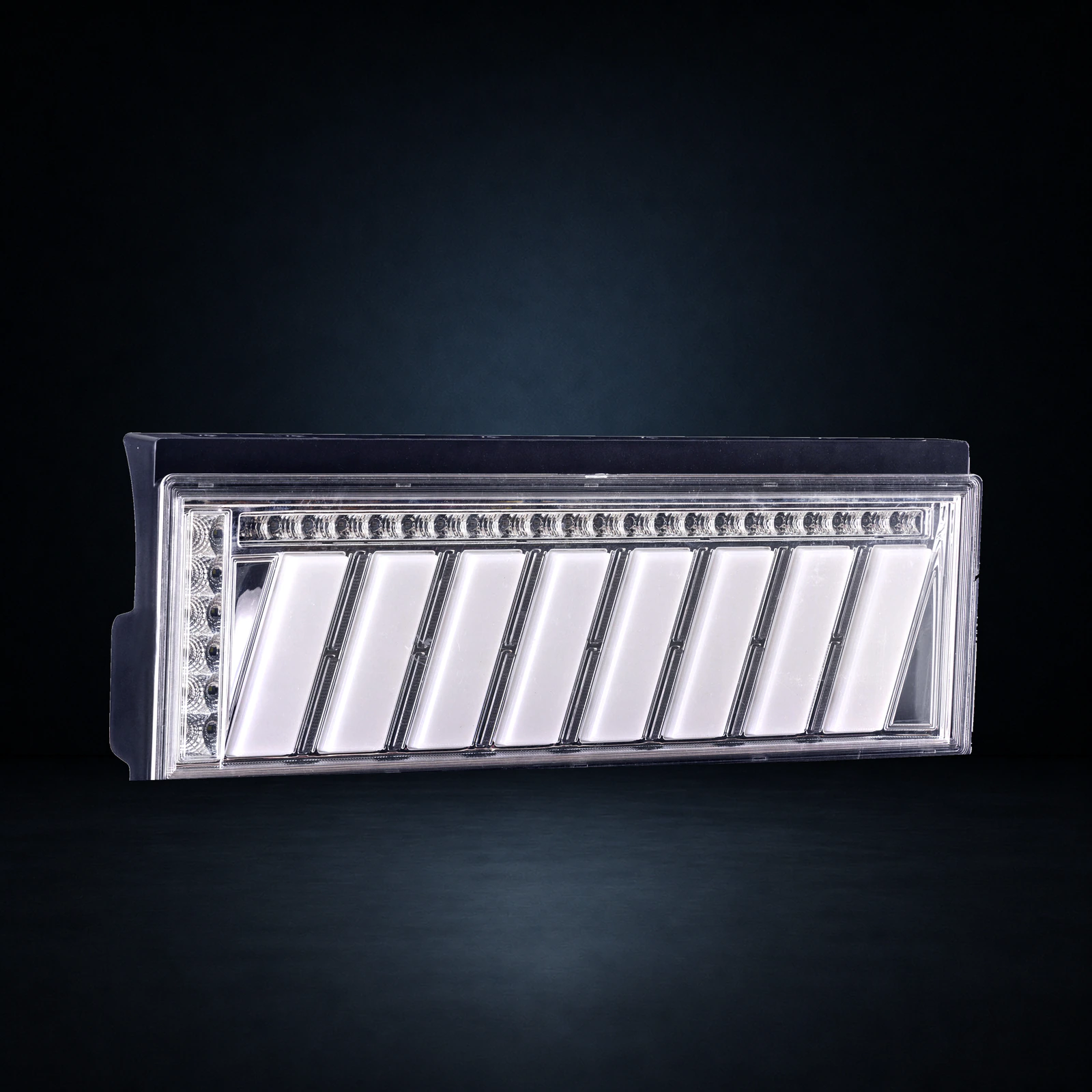

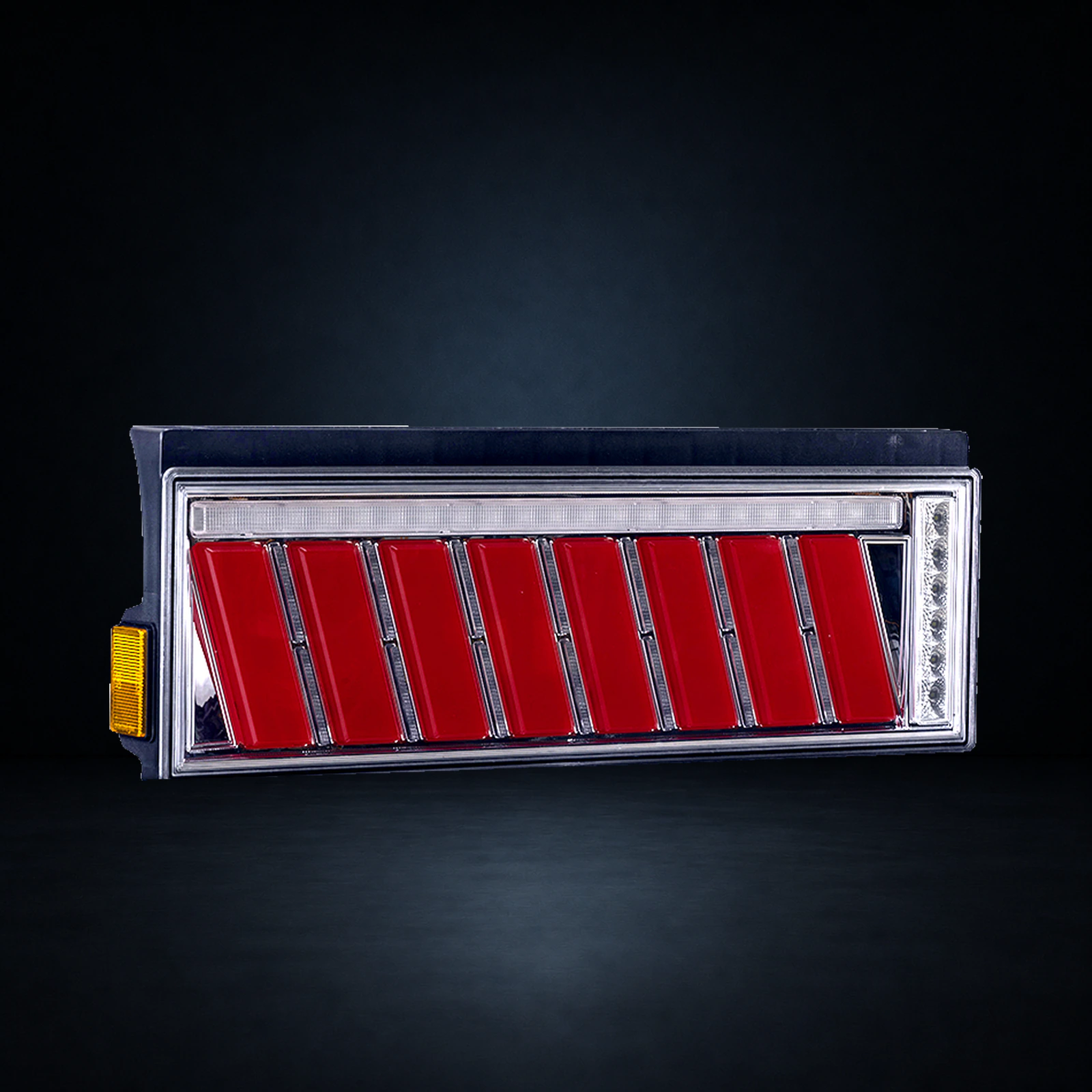

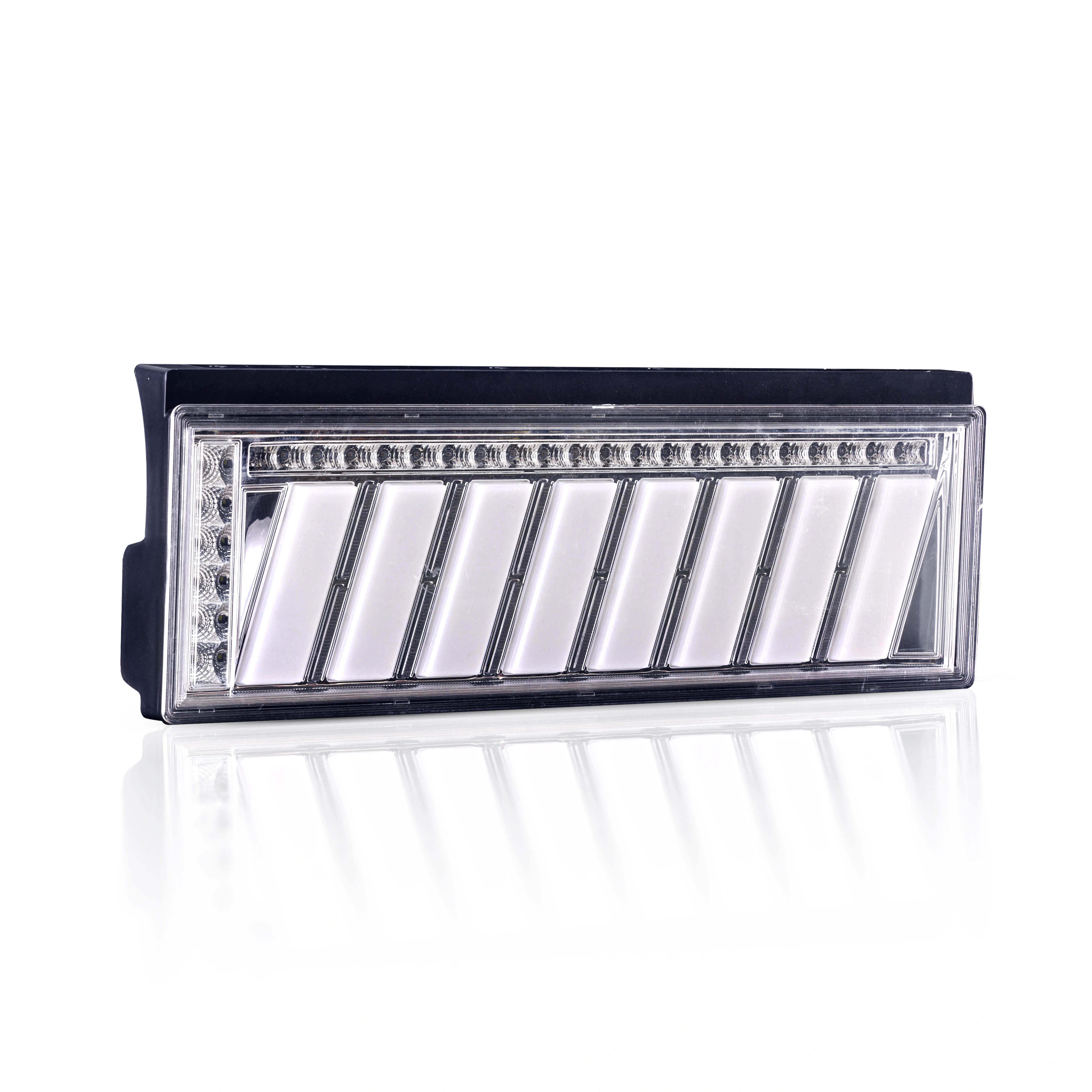

Oiran COMBO Samurai LLarge full-LED lamp in three lens/bar finishes with a light-bar signature and direct high-output reverse LEDs; 24 V.

Official active-list identity · availability and fitment confirmation required

Oiran COMBO Samurai L3 codes
