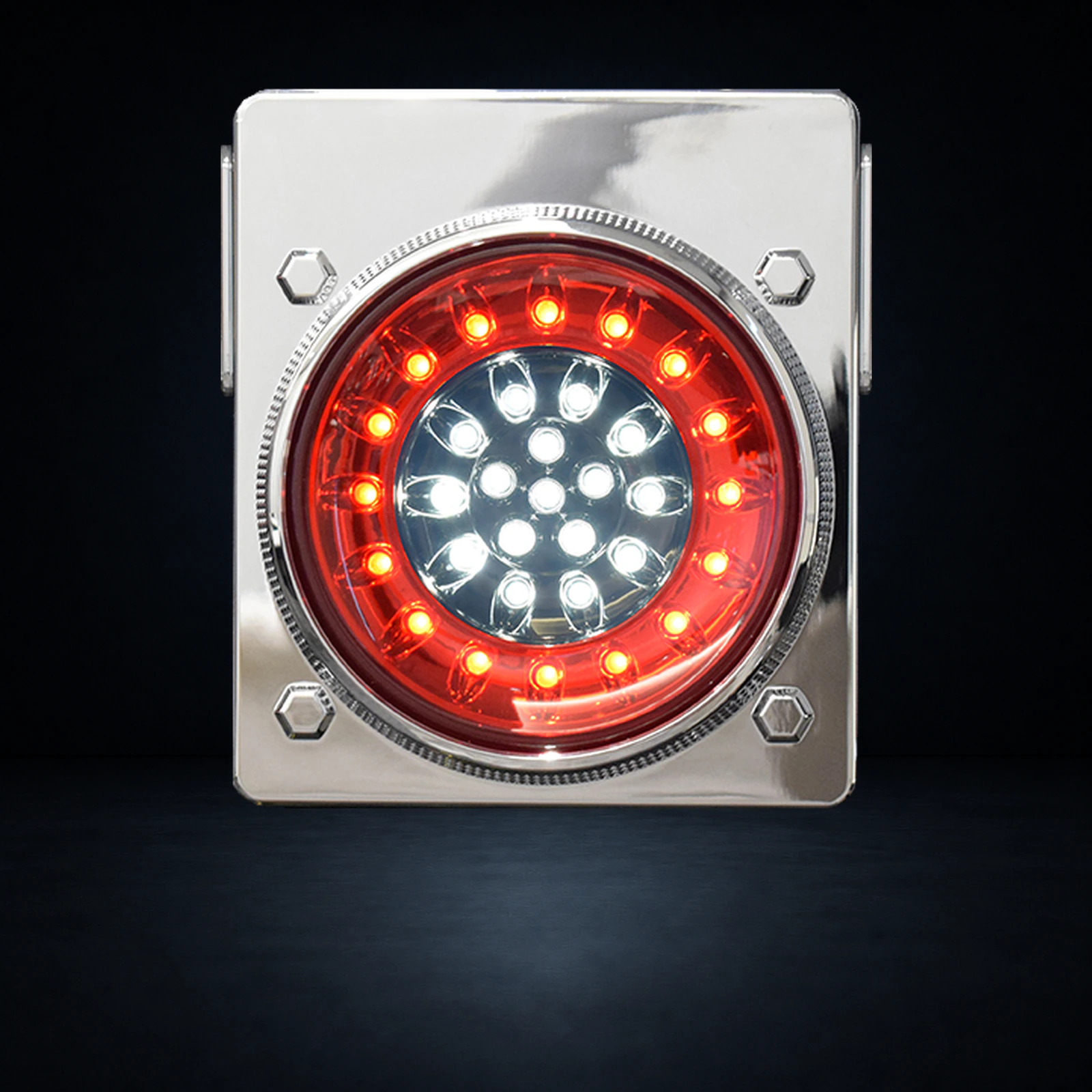

OIRAN 32 LED Tail Lamp

The OIRAN 32 LED Tail Lamp is a compact DC12V/24V multifunction rear lamp available in two versions.

Dimensions: 125 × 143 × 62 mm with frame
Lighting: 32 LEDs per lamp
Voltage: DC12V/24V

Specifications and distributor inquiry · no direct online sale

01 — PRODUCT

Product overview.

The OIRAN 32 LED Tail Lamp is a compact DC12V/24V multifunction rear lamp available in two versions. OWRC-M1 combines turn signal, position and brake functions. OBRC-M1 combines reverse, position and brake functions.

Each lamp uses 32 LEDs in a 125 × 143 × 62 mm body with frame and carries ECE approval. A separate rear reflector is required. Depending on the vehicle, an optional resistor kit may be needed to prevent a bulb-out warning.

02 — SPECIFICATION

Verified specifications.

Dimensions	125 × 143 × 62 mm with frame
Lighting	32 LEDs per lamp
Voltage	DC12V/24V
OWRC-M1	Turn signal, position and brake; E11 148R00/04 50576 00
OBRC-M1	Reverse, position and brake; E11 148R00/04 50577 00
Sales unit	One lamp
Optional resistor	OER0-32N for 12V or OER0-46N for 24V may be required for bulb-out warnings
Reflector	Separate rear reflector required
Warranty	1 year

03 — OFFICIAL CONFIGURATIONS

2 verified configurations.

The official active-list codes below are grouped by family or published technical attribute. Confirm current availability and vehicle fitment with a distributor.

Oiran 32LEDCompact single-unit tail lamp one size below 46LED; turn-signal and reverse versions; 12/24 V.

Official active-list identity · availability and fitment confirmation required

Oiran 32LED2 codes
