OIRAN JAPAN · SHOWROOM CATALOG

OIRAN COMBO HAYATE

Name: OIRAN COMBO HAYATE
Brand: OIRAN JAPAN

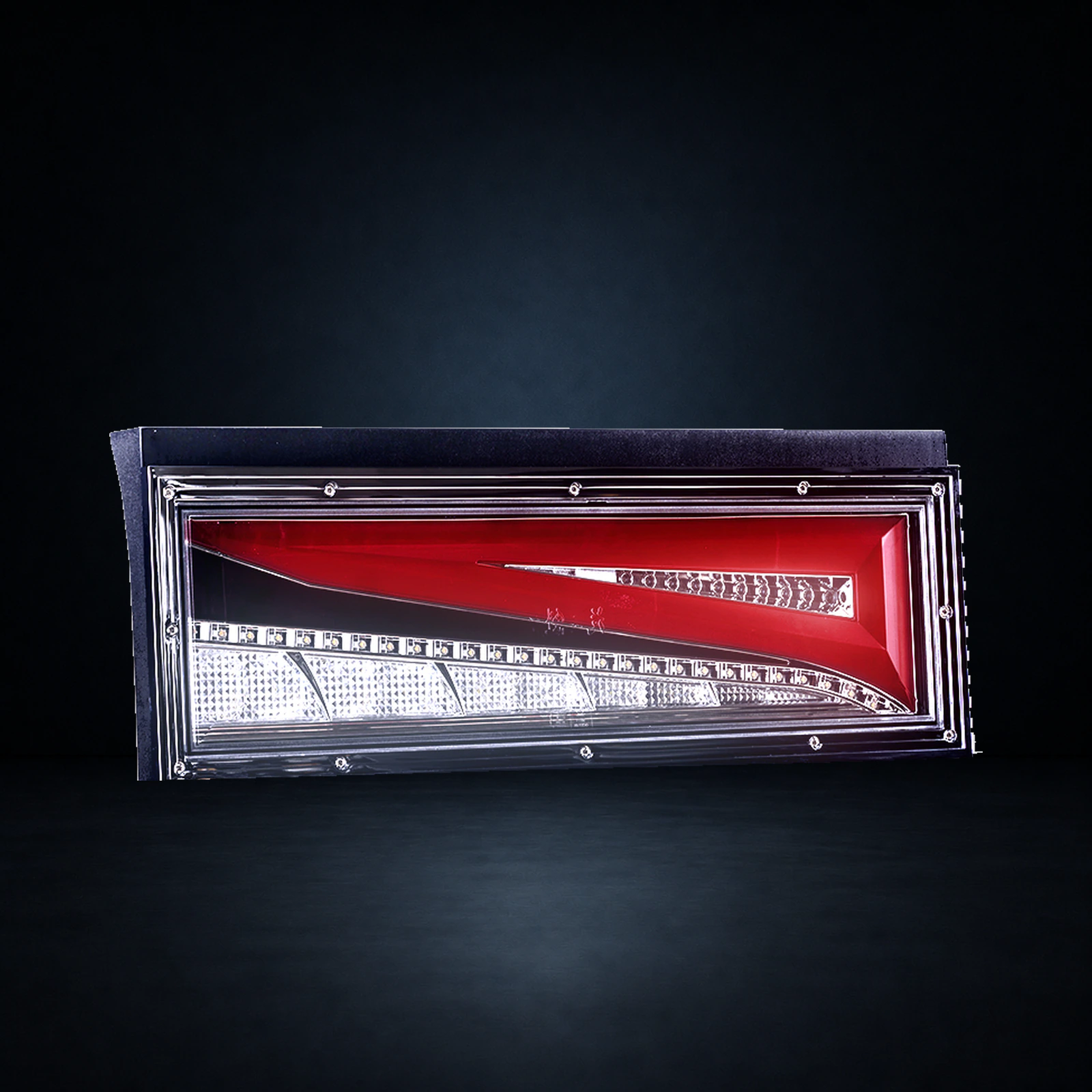

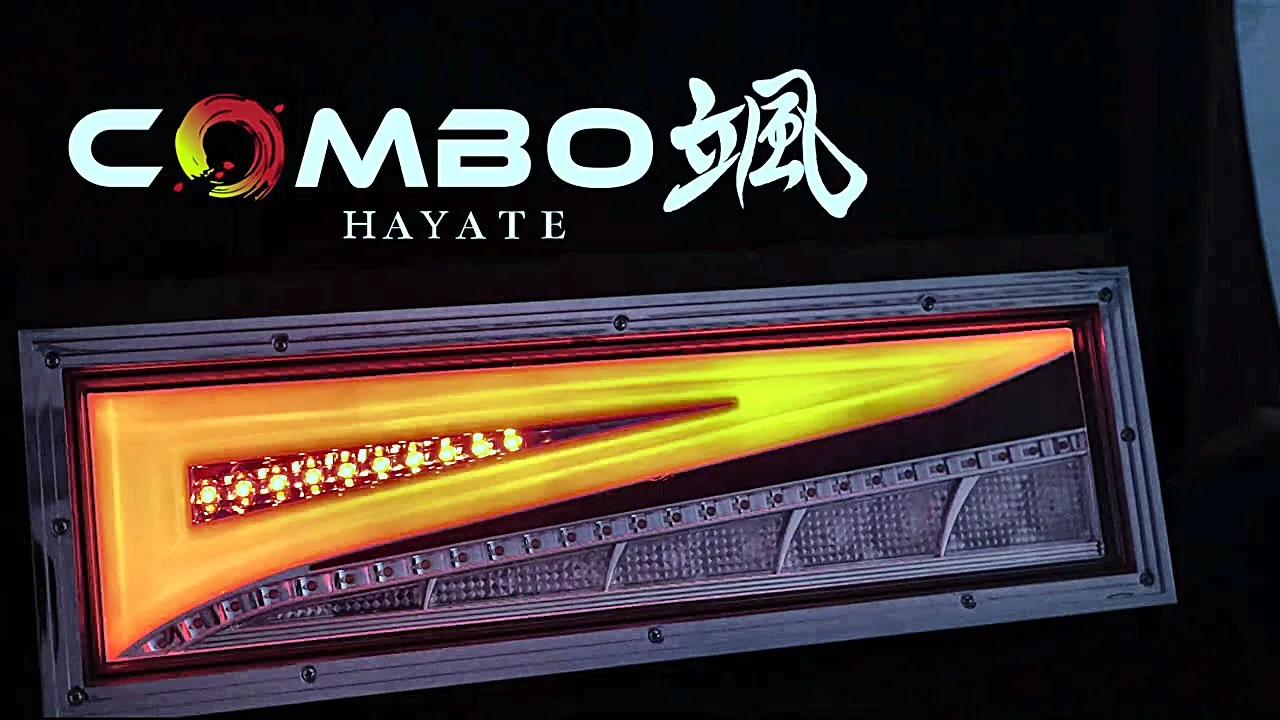

OIRAN COMBO HAYATE is a large DC24V full-LED rear combination lamp set with a removable bezel.

Where to buy Check Compatibility

Specifications and distributor inquiry · no direct online sale

01 — PRODUCT

Product overview.

OIRAN COMBO HAYATE is a large DC24V full-LED rear combination lamp set with a removable bezel. It combines position, brake, turn-signal and reverse functions, and its turn signal can be switched between standard and sequential operation.

The OCHT-01 package contains two lamps and mounting hardware. Side and rear reflectors are not included and must be installed separately.

02 — SPECIFICATION

Verified specifications.

Set part number: OCHT-01
Dimensions: 611.5 × 218 × 126 mm per lamp
Lens face: 570 × 152.5 mm
Voltage: DC24V
Lighting: 246 LEDs per left/right pair; 123 per lamp

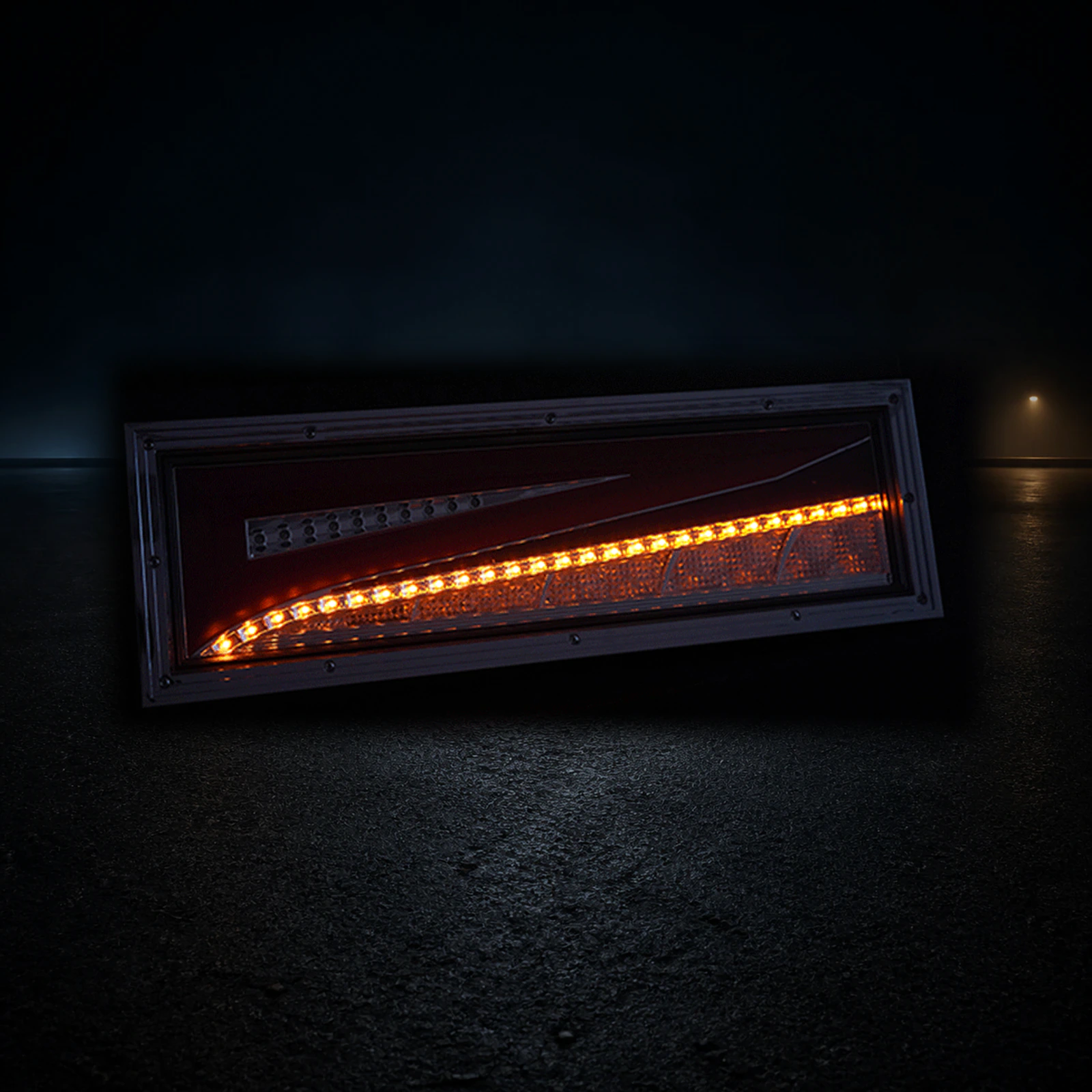

Turn signal: switchable standard or sequential
Bezel: removable
ECE approval: E11-50271; turn E11 06R02/00/50271; reverse E11 23R01/00 50271; position/brake E11 07R03/00 50271
Reflectors: side and rear reflectors not included
Warranty: 1 year

03 — OFFICIAL CONFIGURATIONS

1 verified configuration.

The official active-list codes below are grouped by family or published technical attribute. Confirm current availability and vehicle fitment with a distributor.

Oiran COMBO HayateLarge all-in-one full-LED position, brake, turn, and reverse lamp with switchable sequential indication; 24 V.

Official active-list identity · availability and fitment confirmation required

Oiran COMBO Hayate1 code
