OIRAN JAPAN · SHOWROOM CATALOG

OIRAN GO

Full-width LED tail lamp with light tube and sequential turn signal for the rear of the truck.

Dimensions
613 × 217 × 95 mm
Voltage
24V, ESS-compatible
LEDs
140 per lamp (280 per pair), plus light tube
Specifications and distributor inquiry · no direct online sale

01 — PRODUCT

Built for the road.

A stroke of light, drawn in motion.

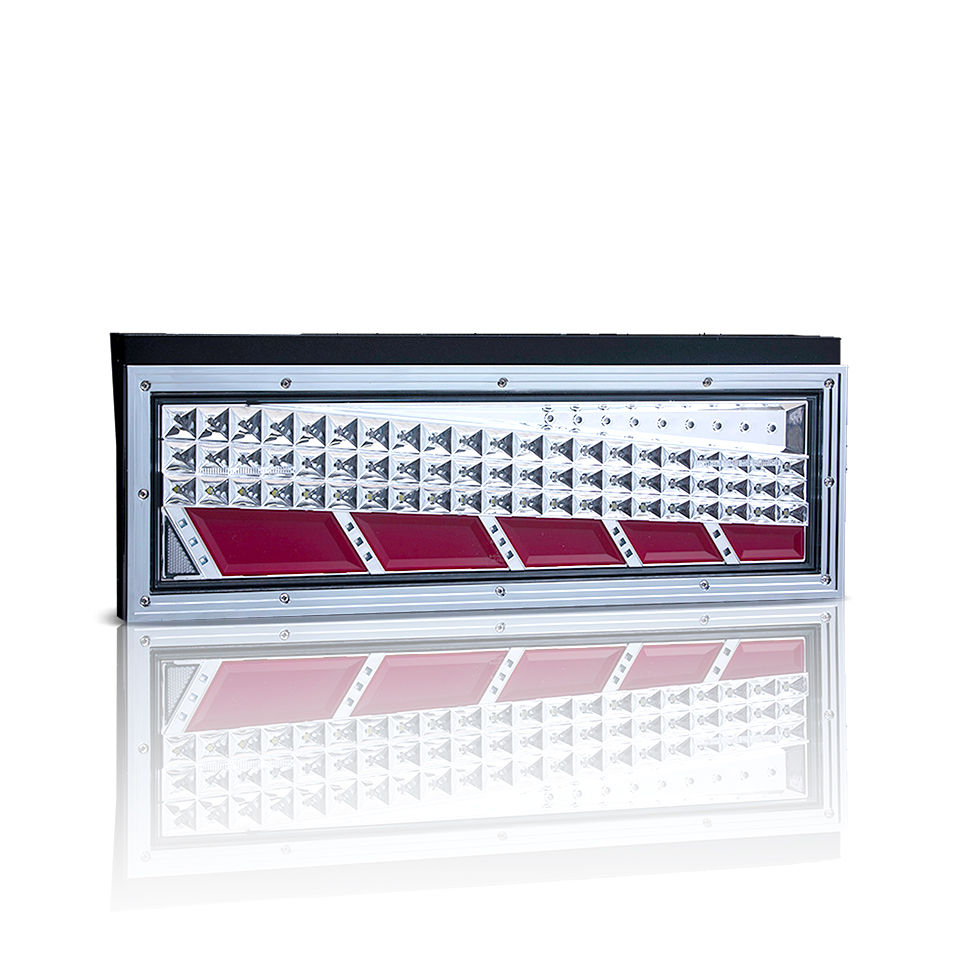

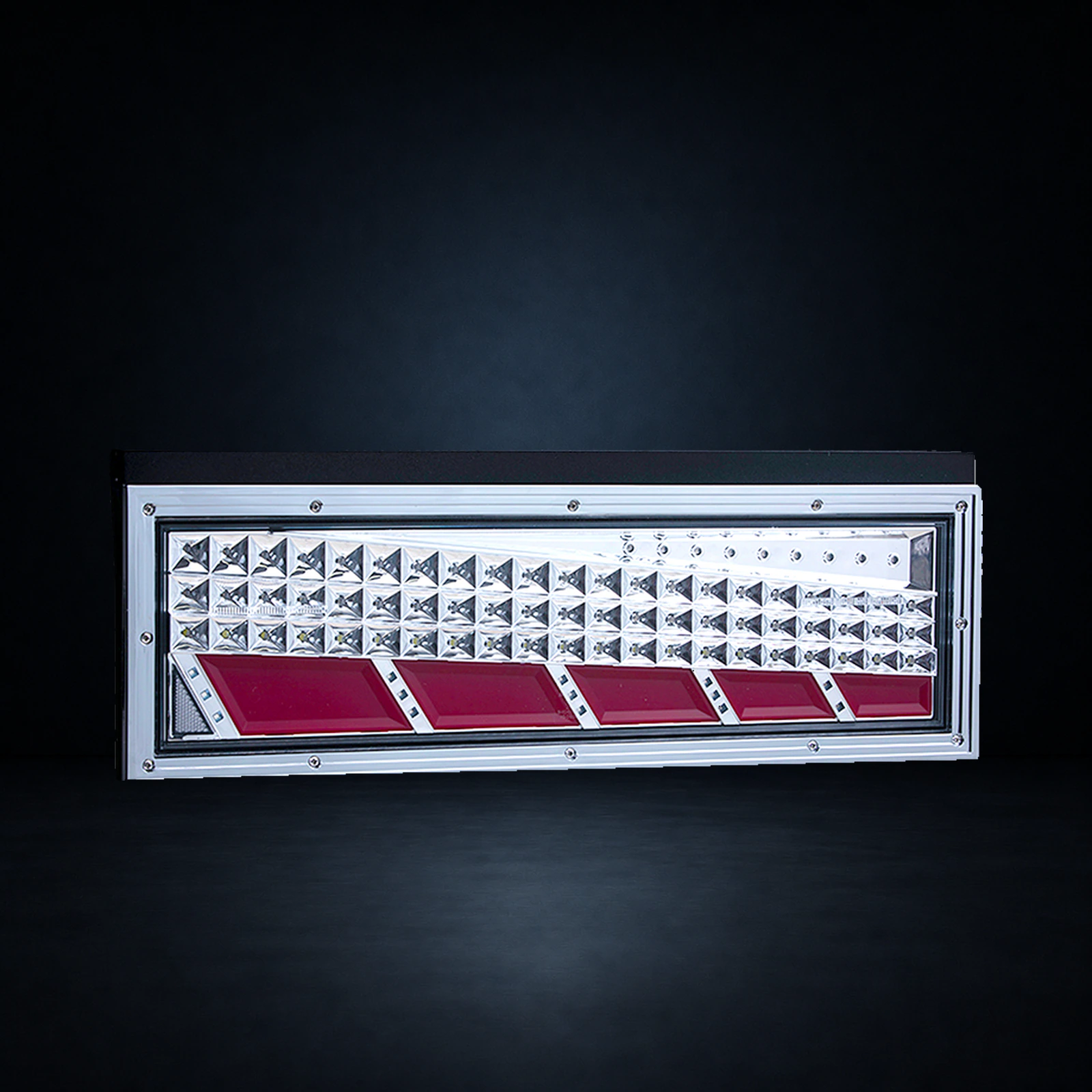

The OIRAN GO is a large-format LED tail lamp for Japanese heavy-duty trucks (Hino, Fuso, Isuzu, UD): a continuous light tube framing 140 LEDs per lamp — 280 across a pair — with a dynamic sequential turn signal that sweeps in the direction of travel.

  • Functions: running light, brake light, sequential turn signal, reverse light
  • 140 LEDs per lamp; light-tube running light
  • 24V, compatible with Emergency Stop Signal (ESS) systems
  • 613 × 217 × 95 mm; PMMA lens, PC housing, ABS inner lens
  • Thermocompression-bonded for water resistance and durability; −30 °C to 45 °C
  • ECE-certified (E11 148R00/04 0349 00); part number OCGO-01

Supplied by position (left / right) — confirm the required side with a distributor. Pairs with OIRAN JAPAN plug-in harnesses, so installation needs no cutting of factory wiring. Covered by a 1-year warranty. EU / EEA: verify local regulations before road use.

02 — SPECIFICATION

The data.

Dimensions613 × 217 × 95 mm
Voltage24V, ESS-compatible
LEDs140 per lamp (280 per pair), plus light tube
FunctionsRunning light, brake light, sequential (dynamic) turn signal, reverse light
MaterialsLens PMMA, housing PC, inner lens ABS
ConstructionThermocompression bonding for water resistance and durability
Operating temperature−30 °C to 45 °C
Part numbersOCGO-01
CertificationECE: turn signal E11-148R00-0349; turn / tail / brake / reverse under cert E11 148R00/04 0349 00
Warranty1 year
