OIRAN COMBO MINI

Name: OIRAN COMBO MINI
Brand: OIRAN JAPAN

OIRAN COMBO MINI is a compact DC12V/24V full-LED rear combination lamp with a universal left/right design.

Where to buy Check Compatibility

Specifications and distributor inquiry · no direct online sale

01 — PRODUCT

Product overview.

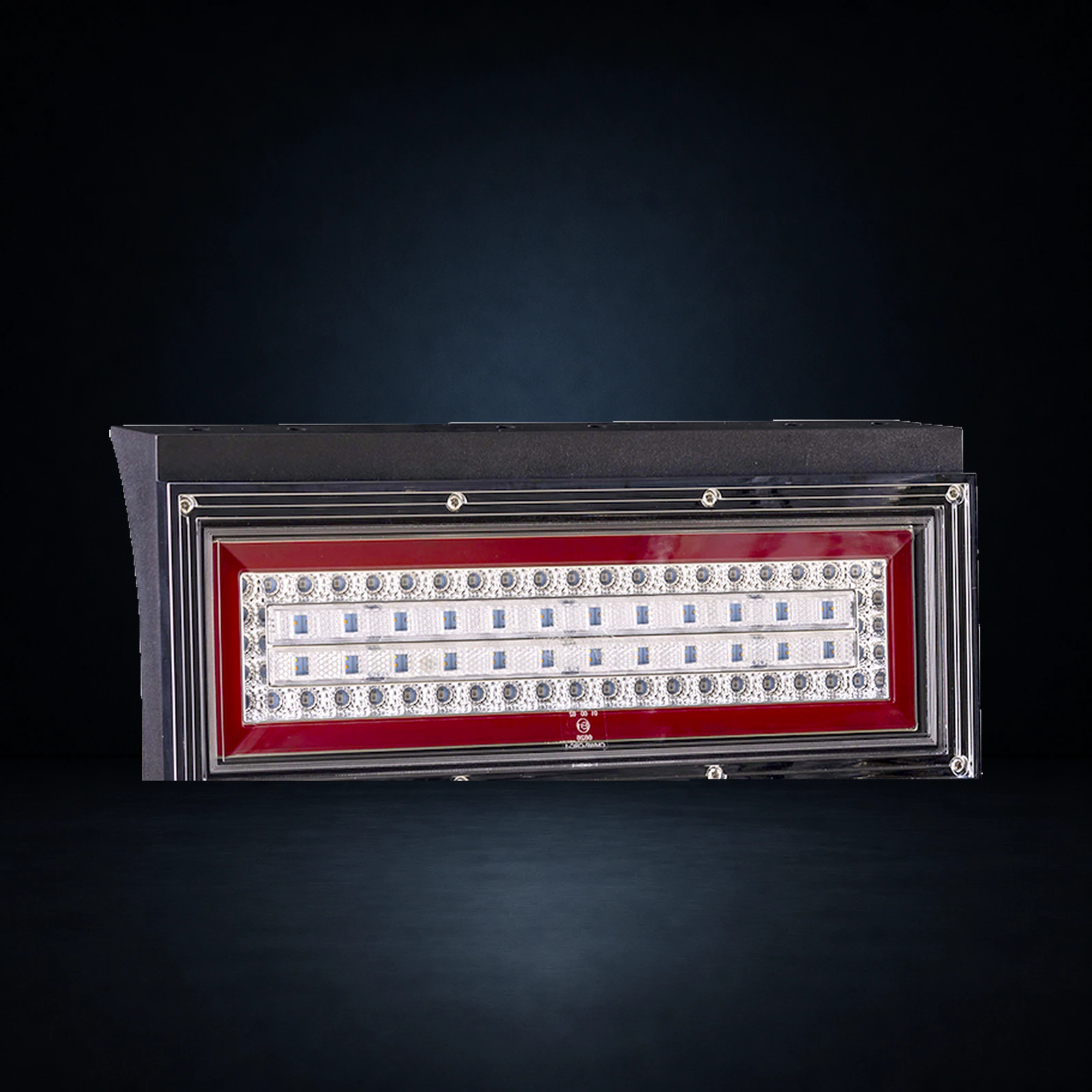

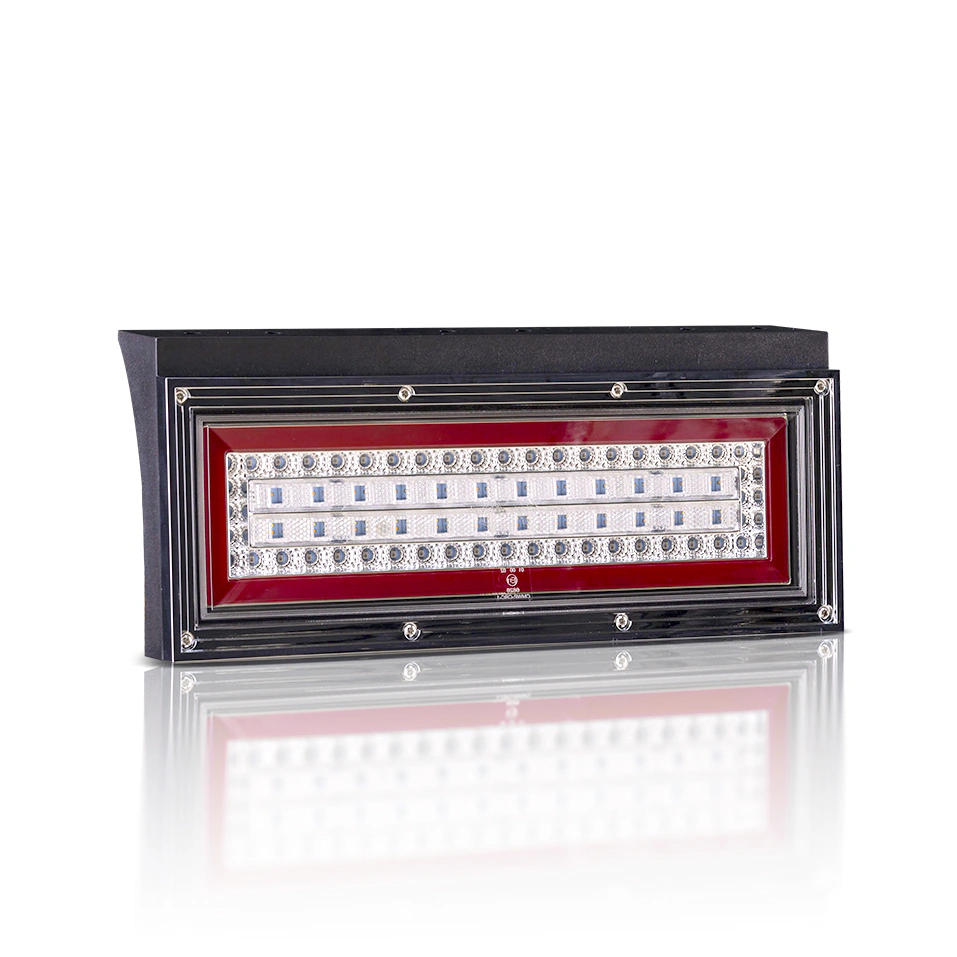

OIRAN COMBO MINI is a compact DC12V/24V full-LED rear combination lamp with a universal left/right design. The complete pair uses 164 LEDs plus an LED tube for position, brake, turn-signal and reverse functions.

The current CMWP-CRC-S2ESS model switches between standard and sequential operation and supports ESS. CMWP-CRC-1N uses standard flashing. The former CMWP-CRC-S2N sequential model is discontinued.

Do not use one S2ESS lamp as a one-side replacement for an S2N lamp because OIRAN warns that the hazard timing will differ. A separate rear reflector is required.

02 — SPECIFICATION

Verified specifications.

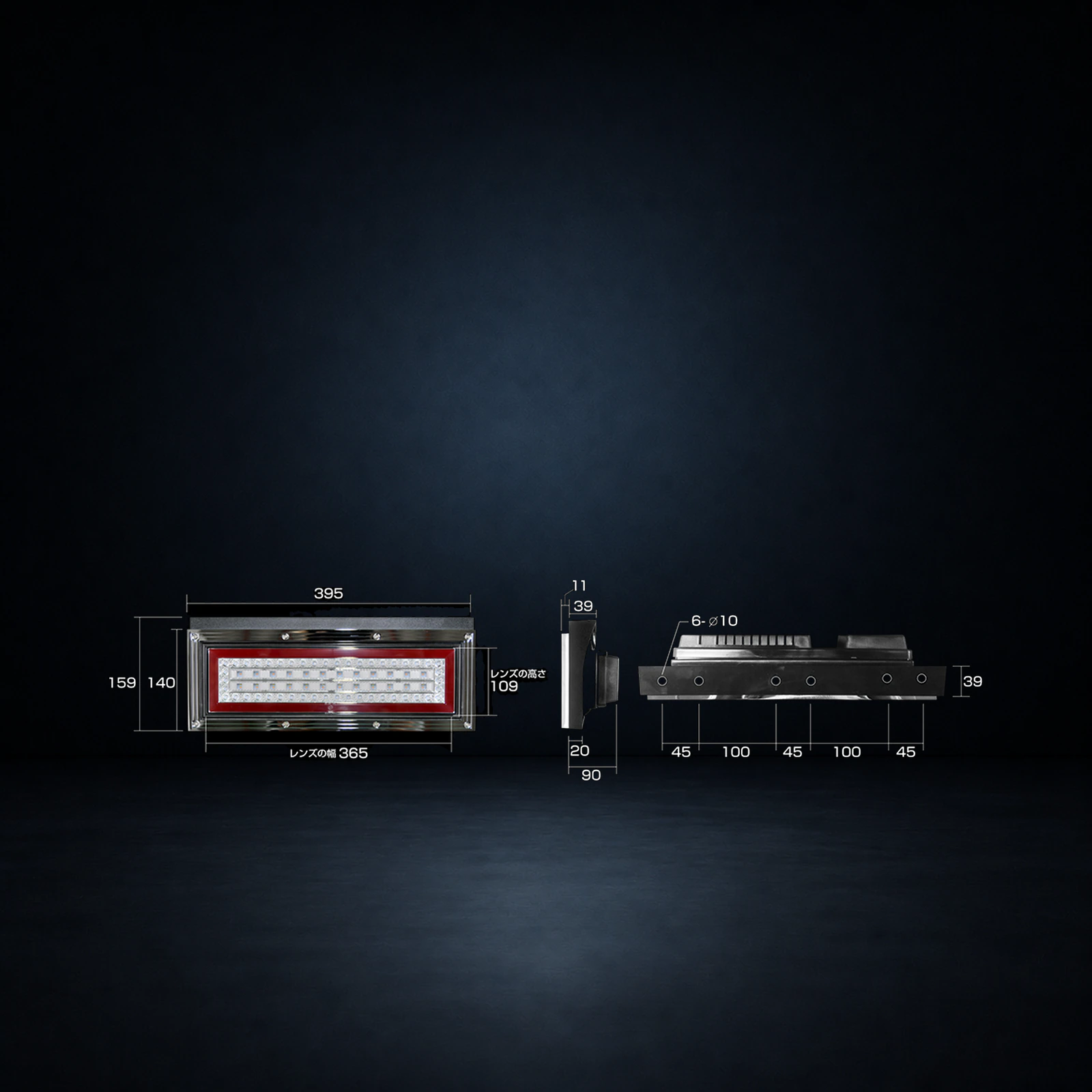

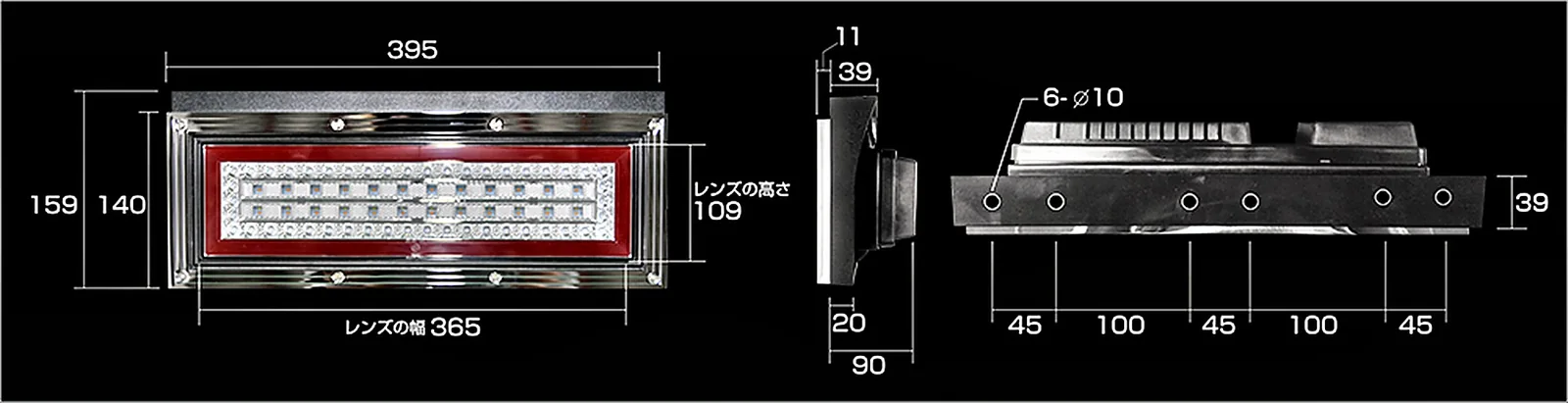

Dimensions: 395 × 159 × 89 mm per lamp
Lens face: 365 × 110 mm
Voltage: DC12V/24V
Lighting per lamp: 46 position/brake LEDs + LED tube, 24 turn-signal LEDs and 12 reverse LEDs
Catalog total: 164 LEDs + LED tube per complete pair
Design: universal left/right
CMWP-CRC-S2ESS: current; switchable standard/sequential; ESS supported; approval E11-50046
CMWP-CRC-1N: current; standard turn signal; approval E11-6626
CMWP-CRC-S2N: sequential turn signal; discontinued
Separate rear reflector required
Warranty: 1 year

03 — OFFICIAL CONFIGURATIONS

1 verified configuration.

The official active-list codes below are grouped by family or published technical attribute. Confirm current availability and vehicle fitment with a distributor.

Oiran COMBO MiniCompact light-bar tail lamp with combined reverse/turn lighting; the active version supports ESS and switchable sequential operation; 12/24 V.

Official active-list identity · availability and fitment confirmation required

Oiran COMBO Mini1 code
